AMV BOLT PULLER
Automatic bolt puller

AMV Bolt puller is automatic pull force tester for rock reinforcement bolts, allowing easy testing and documentation trough AMV Connected. The bolt tester will pull according to defined parameters, perform logging, and verify test results.

Easy to use

AMV Bolt Puller is designed to allow one operator perform tests normally requiring two operators - 100% automatically.

Documentation

The machine is equipped with sensors and software to document the pulls test. All results available in AMV Connected.

Standard basket

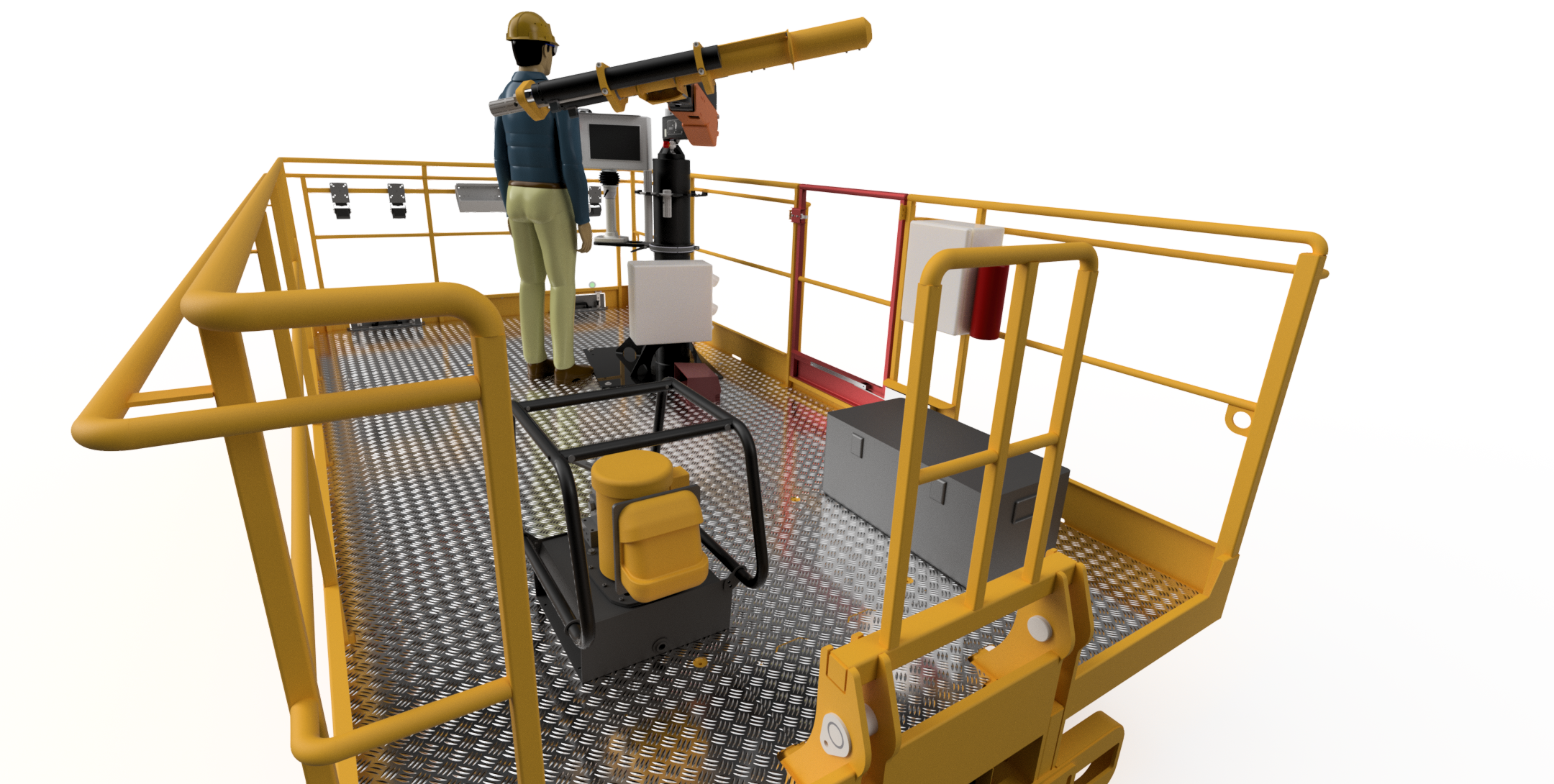

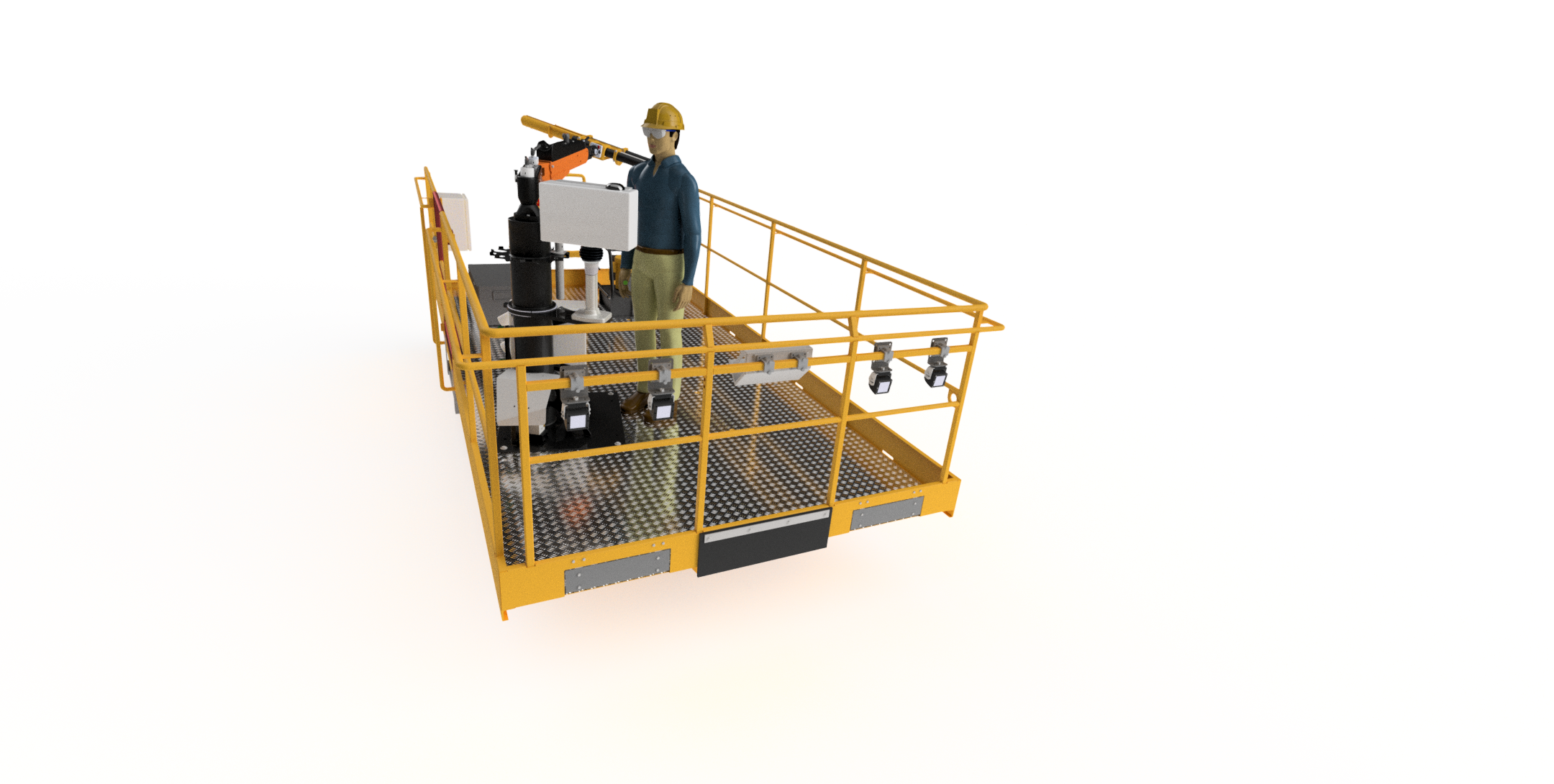

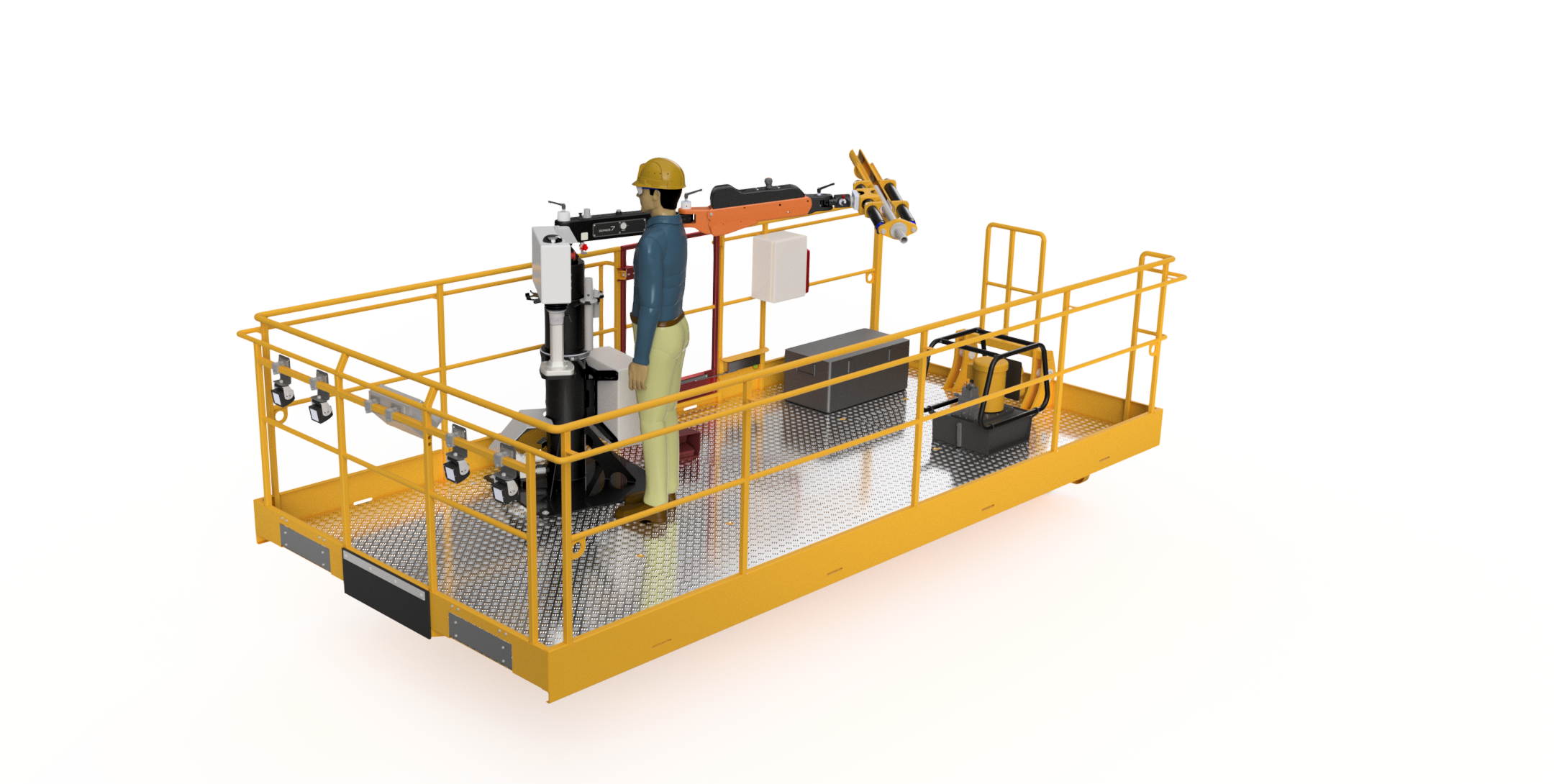

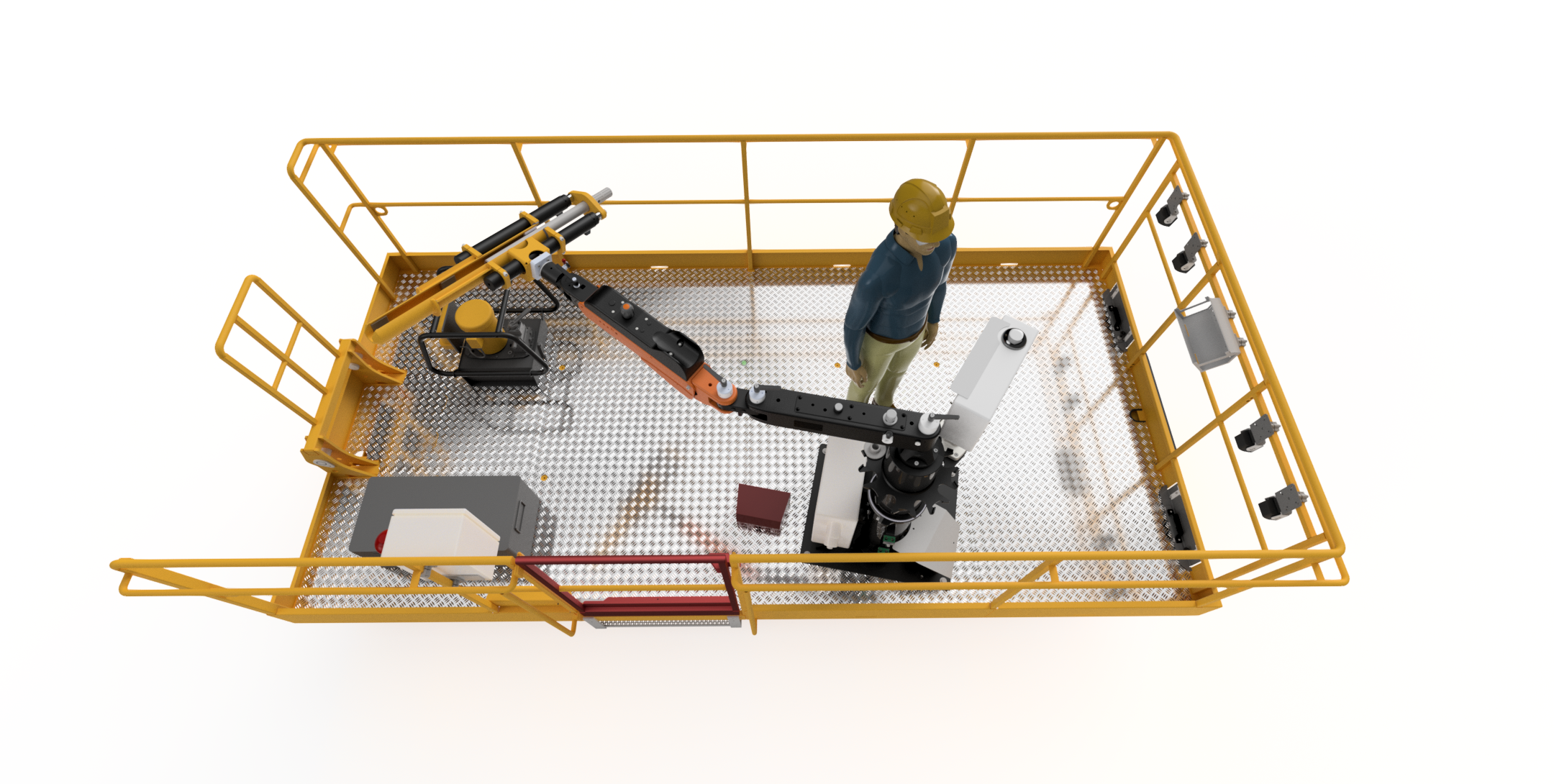

AMV Bolt Puller is designed to integrate with a standard working basket for AMV 11QR, avoiding unnecessary additional costs.

Specification

    • Max pull force: 14 000kg

    • Bolt lenghts: 600-1500 mm exposed bolt

    • System pressure: 350 bar

    • Total weight: approx 700kg

    • Electric: 230/400V

    • Installed power: 1,25kW

    • System pressure: 350 bar

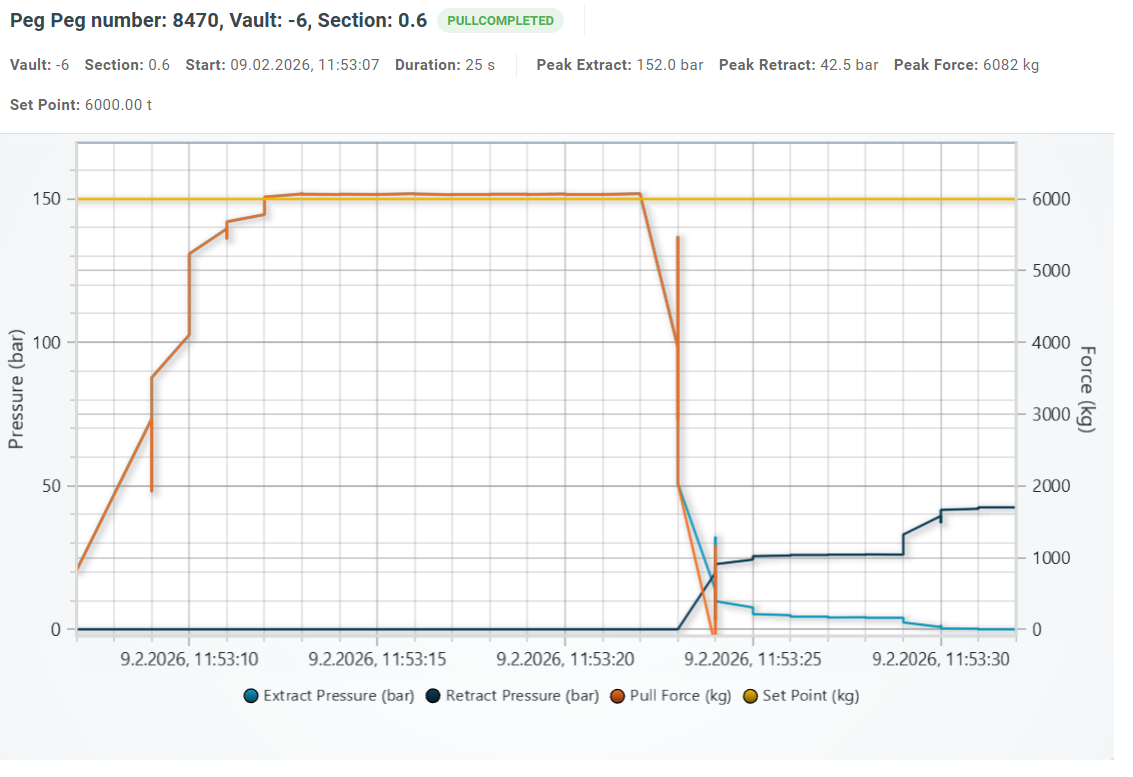

  • The bolt puller is equipped with full automation and datalogging system. All test data can be downloaded and viewed in AMV Connected software.
    The following data can be viewed:

    • Peg number

    • Bolt location

    • User specified pull force (tons)

    • Hold time (seconds)

    • Test results (Successfull/faulty)

    • Bolt location (Grid view)

    The report can be used as documentation and exported as Excel or PDF.
