AMV Cable reels
Stationary power supply
AMV Cable reels are designed to provide power supply to machines where rapid connection and relocation is required, such as tunneling and mining equipment. Available in narrow and wide configuration, designed to hold up to 500m cable for 1000V supply.

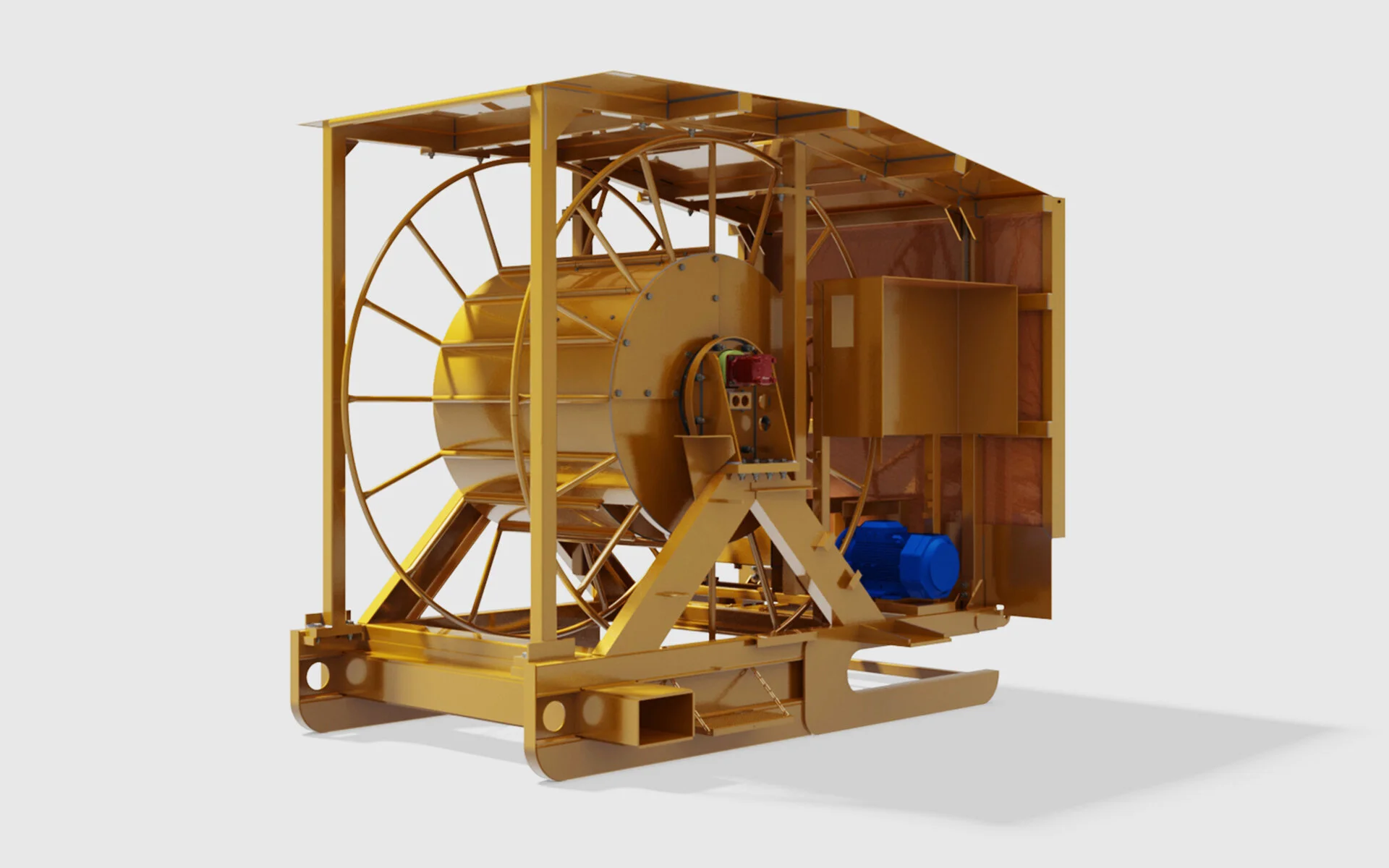

AMV cable reel - Narrow version
Narrow version is ideal for projects with limited cross section where available width is restricted. Designed to handle up to 500 meter PFSP or TFSP 3x240/70mm² cable. Delivered as standard with blast wall for cable protection during blasting.
Available with integrated electric power pack for cable spooling, can also be operated by hydraulic aggregate from external machine.
Dimensions:
Height: 3170 mm
Width: 1700 mm
Lenght: 3700 mm
Approx weight with cable: 5000 kg
AMV cable reel - Standard version
Standard version is ideal for projects with large cross section or no limitations on widht. Designed to handle up to 500 meter PFSP or TFSP 3x240/70mm² cable. Delivered as standard with blast wall for cable protection during blasting.
Available with integrated electric power pack for cable spooling, can also be operated by hydraulic aggregate from external machine.
Dimensions:
Height: 2900 mm
Width: 2110 mm
Lenght: 3220 mm
Approx weight with cable: 5600 kg
