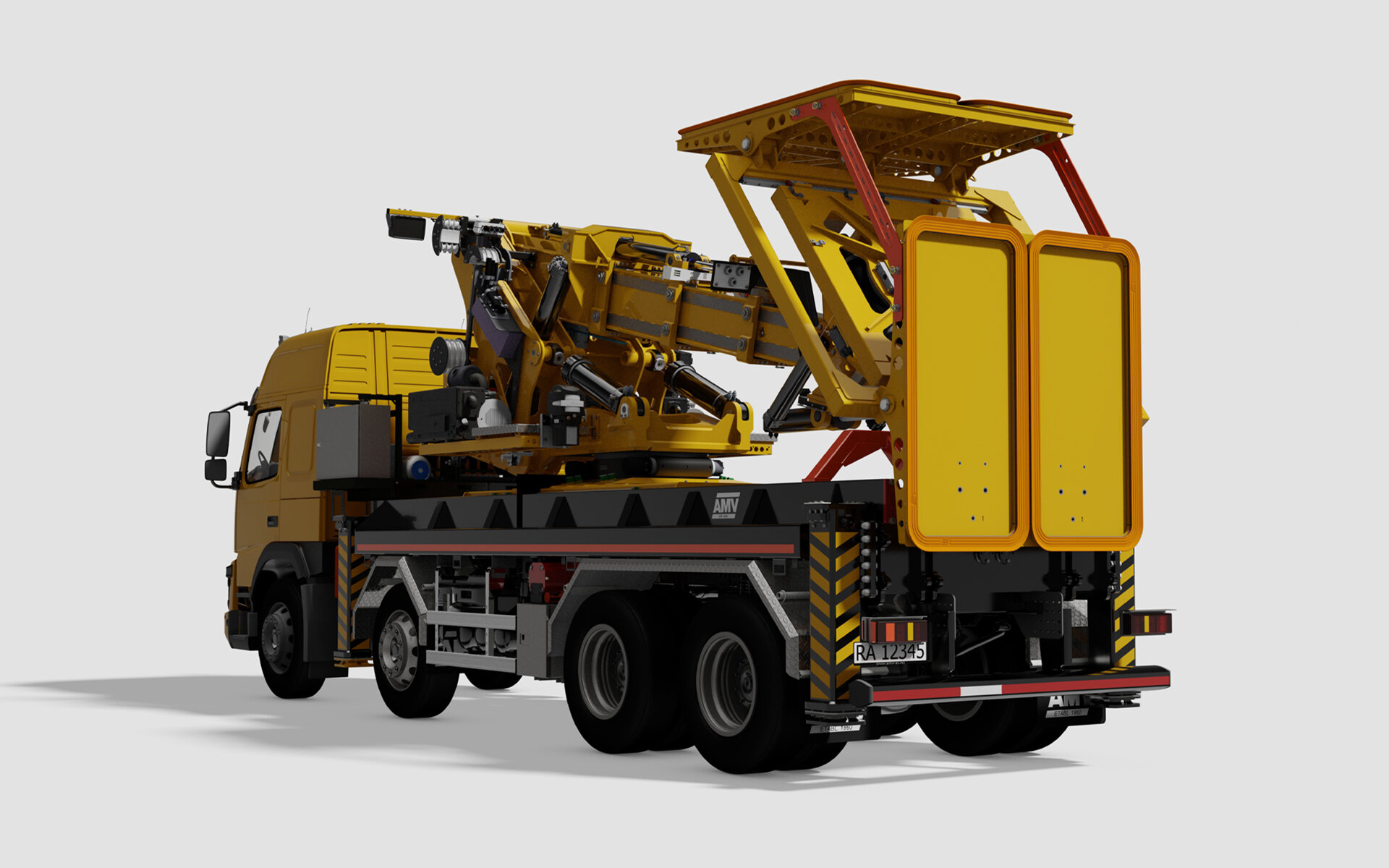

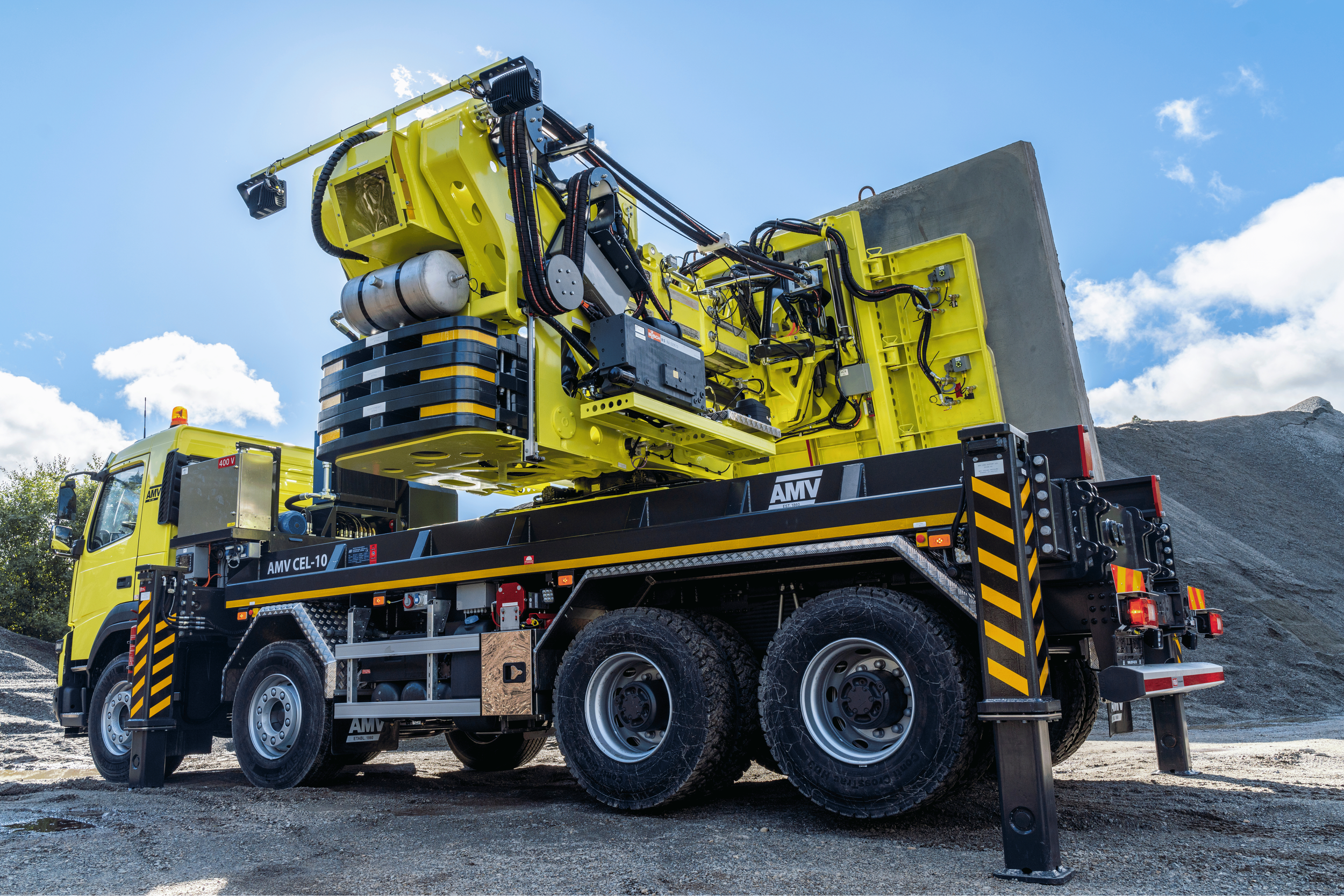

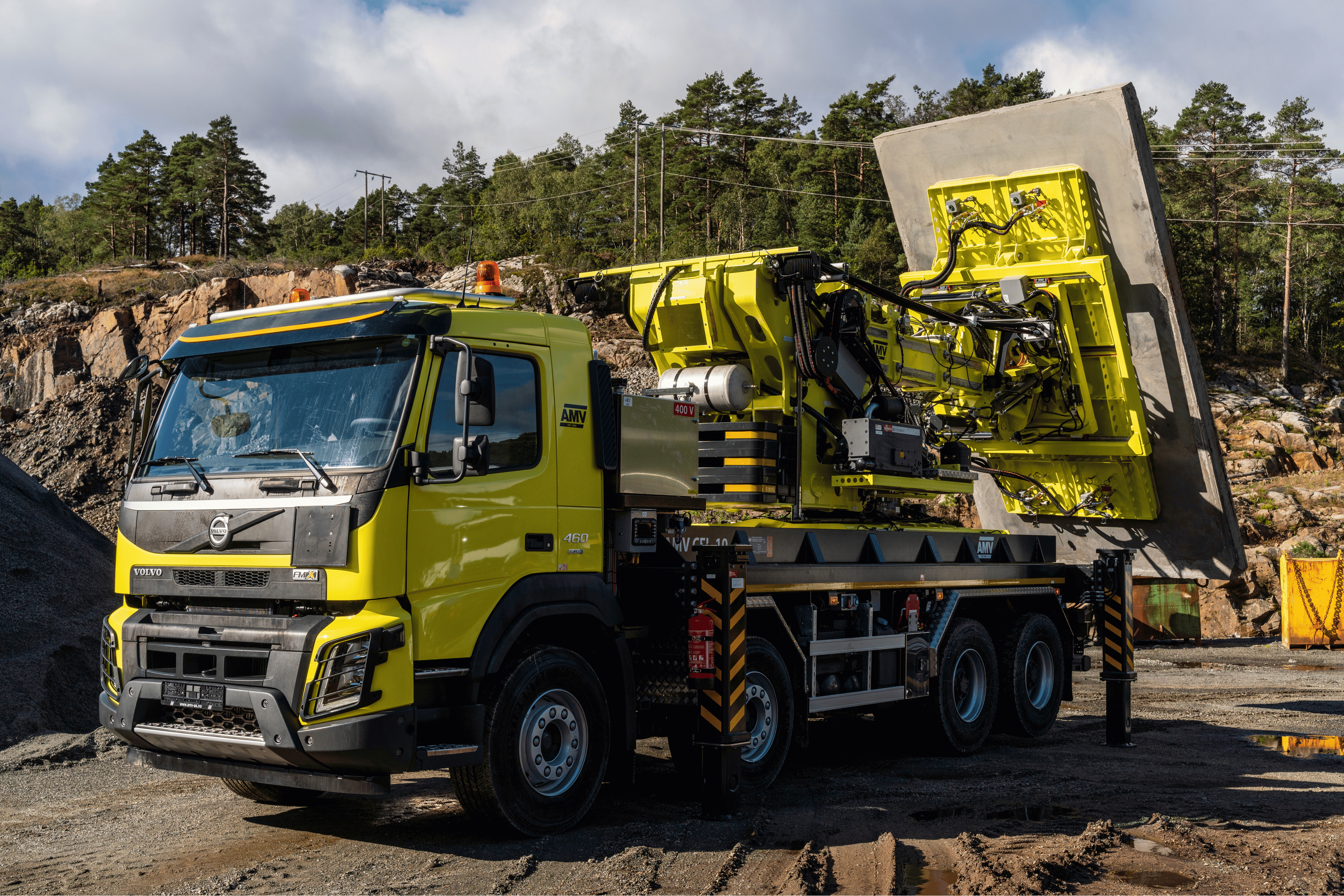

AMV CEL-10
Concrete Element Lifter

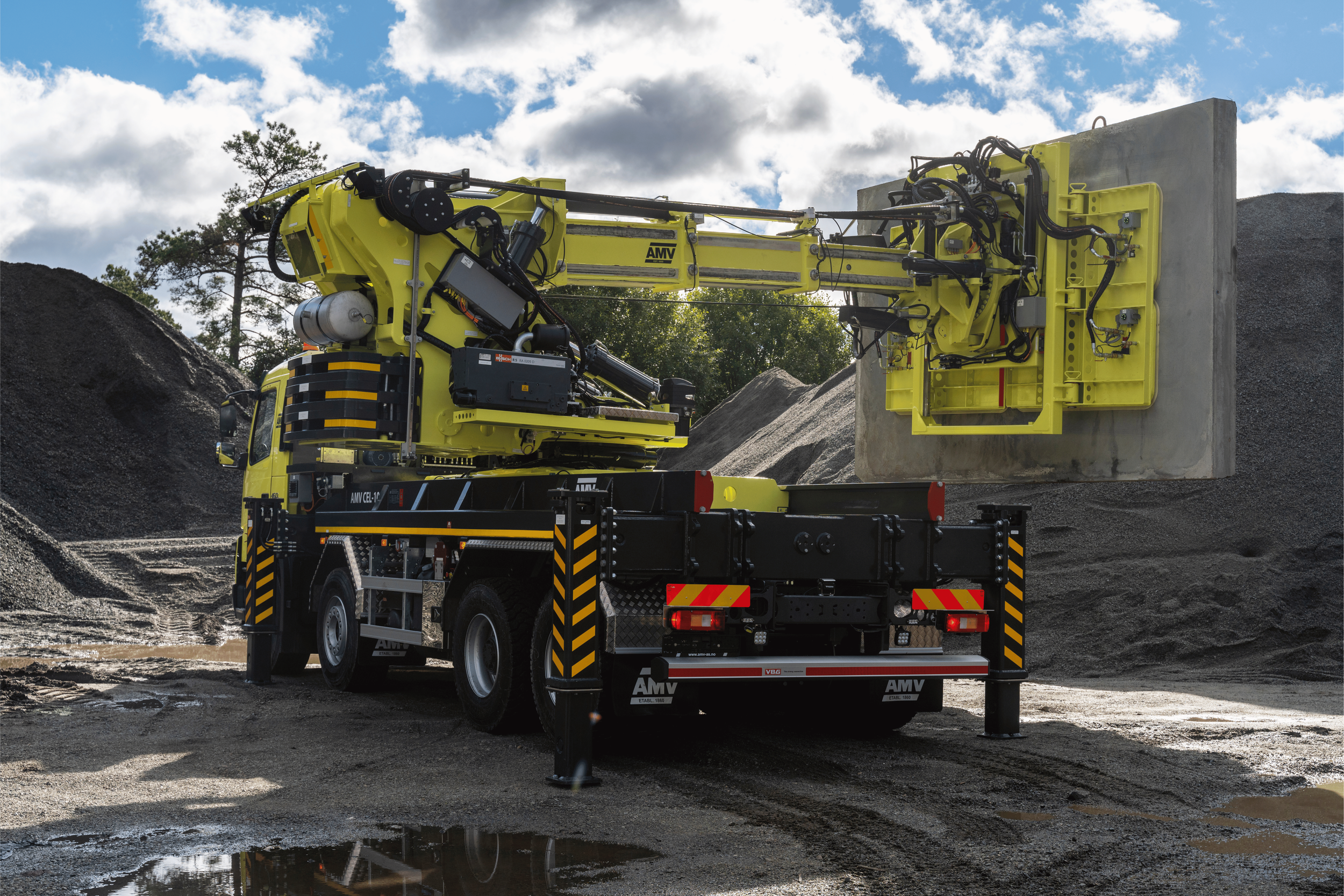

AMV CEL-10 is a purpose built machine for lifting and handeling concrete elements for tunnel linging during installation. With uniqly designed suction cups the machine is able to pick up and lift the elements into place.
High capacity

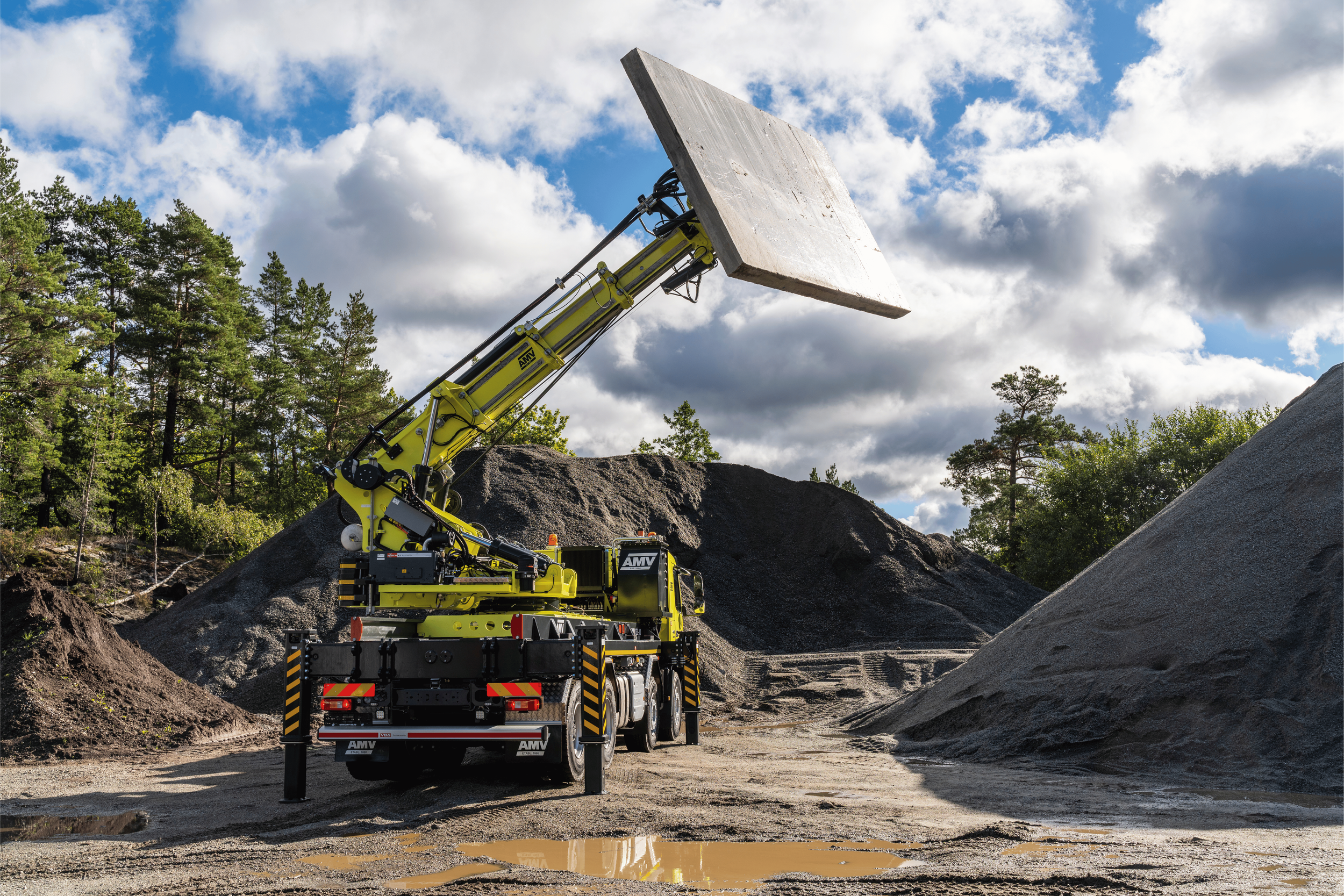

AMV CEL-10 can lift concrete elements up to 8500kg with a horizonal reach of 2.5m, making installation easy and time efficient.
Drivetrain
Hydraulic power for the boom and vacuum system is generated from pumps mounted on the chassis PTO.
Remote Control
All functions of the machine are radio controlled including driving and steering of the truck, allowing operator full overview of operation.
Designed to your need
Working with a curved or straight concrete element? We offer suction plates with spesific design to your needs. Ask us for for info!
Specification
-
Horizontal reach from support legs: 2.5m
Vertical reach: 9.5m
Trolley travel: 1.5m
-
Euro 6 emissions system
Diesel hydraulic HPU from chassis PTO
-
Length: 9.28 m
Width: 2.55 m
Height: 4.15 m
Weight: 35.2 t
-
Max lifting weight: 8500kg
