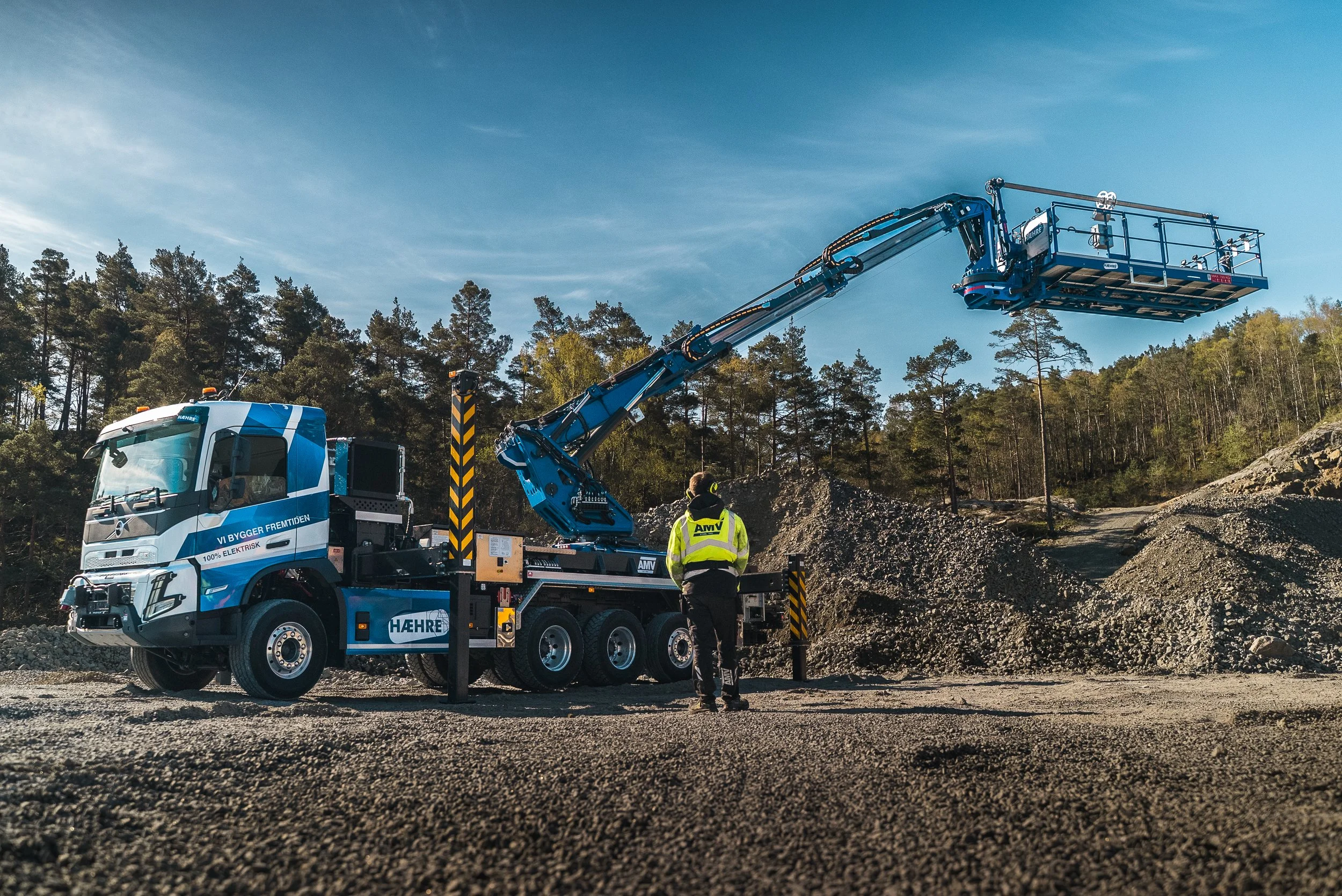

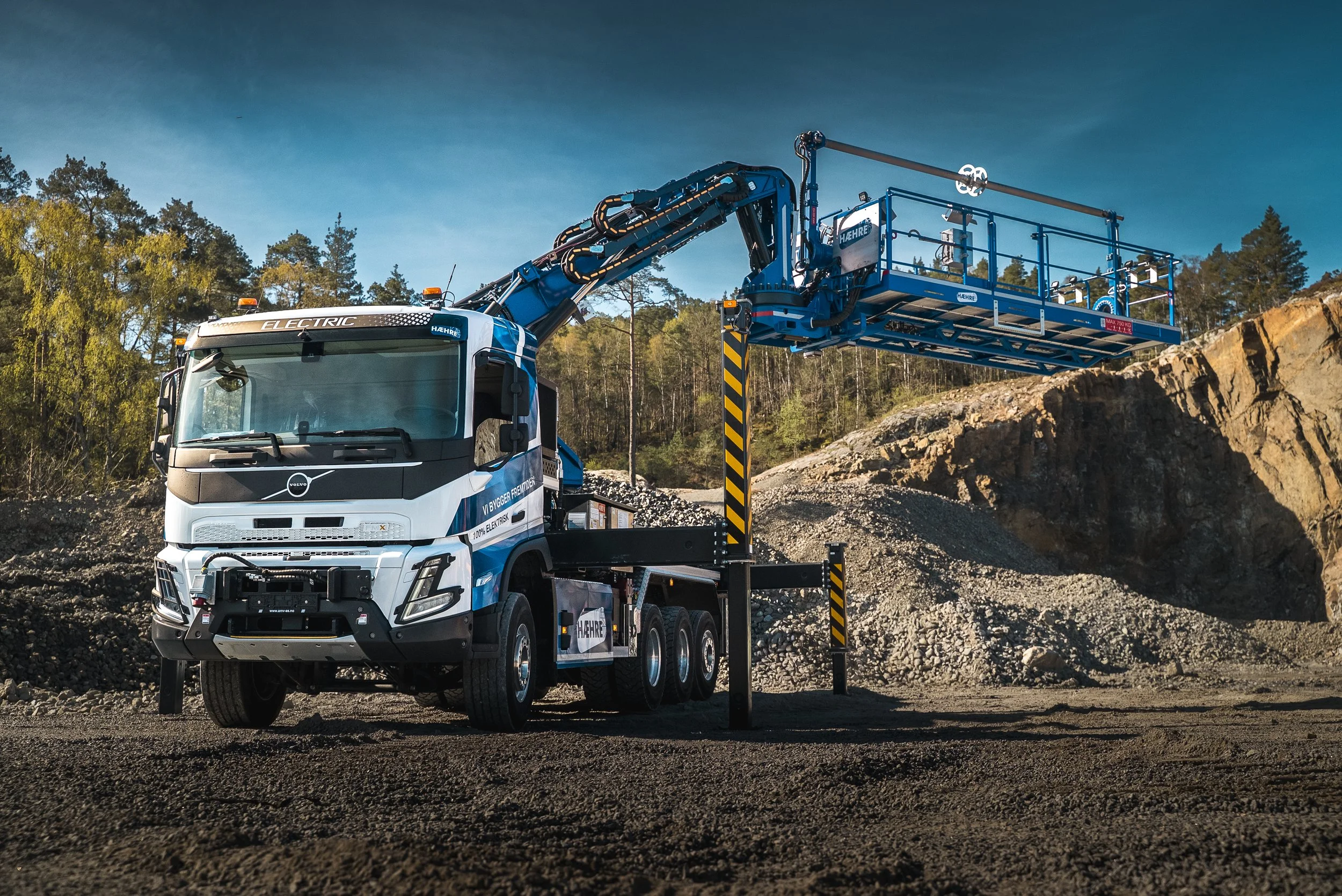

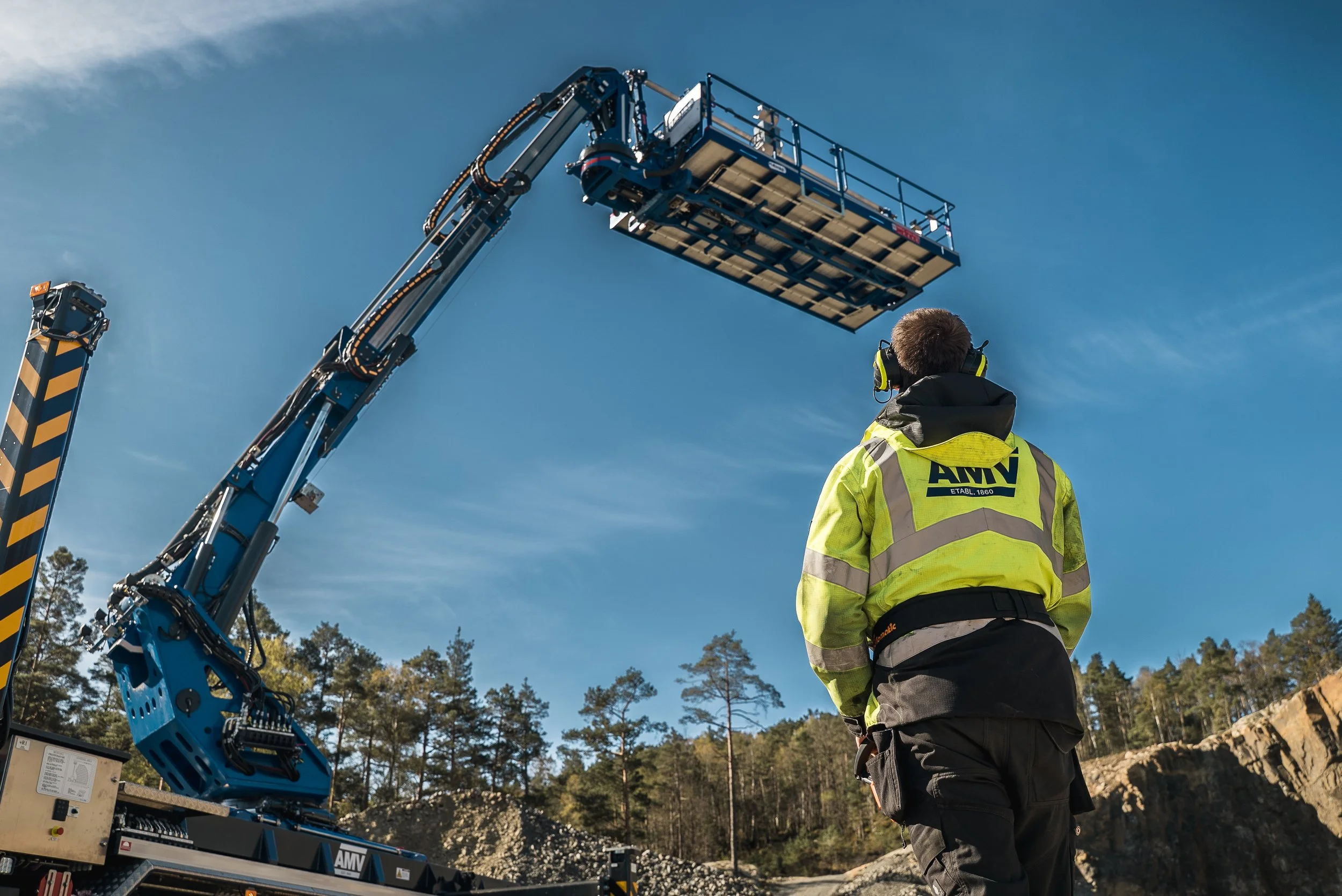

AMV 11QR is a long reach working platform with SWL1000 capacity tailored for work in tunnels and mines. Available with hybrid diesel-/electric (1000V) or battery electric driveline. The wide variety of baskets available makes in ideal for installation work in tunnels.
AMV 11QR
Lifting platform
Quick Coupler
11QR comes with AMV1 quick coupler as standard, allowing quick and easy changes between different baskets and operations.
Drivetrain
The product is available in two variants, QR-H (Diesel/1000V) and QR-E (Battery electric).
Remote Control
Wireless control panel provides full control of boom and chassis for optimal safety and efficiency.
Flexibility
11QR is ideal for work in tunnels and can be delivered with a wide variety of baskets for installation work.
Specifications
-
Max working height: 13 m
Max reach horisontal: 19 m
Boom rotation: ± 105°
Basket rotation: ± 105° -
11QRH- Volvo FMX - 460HP

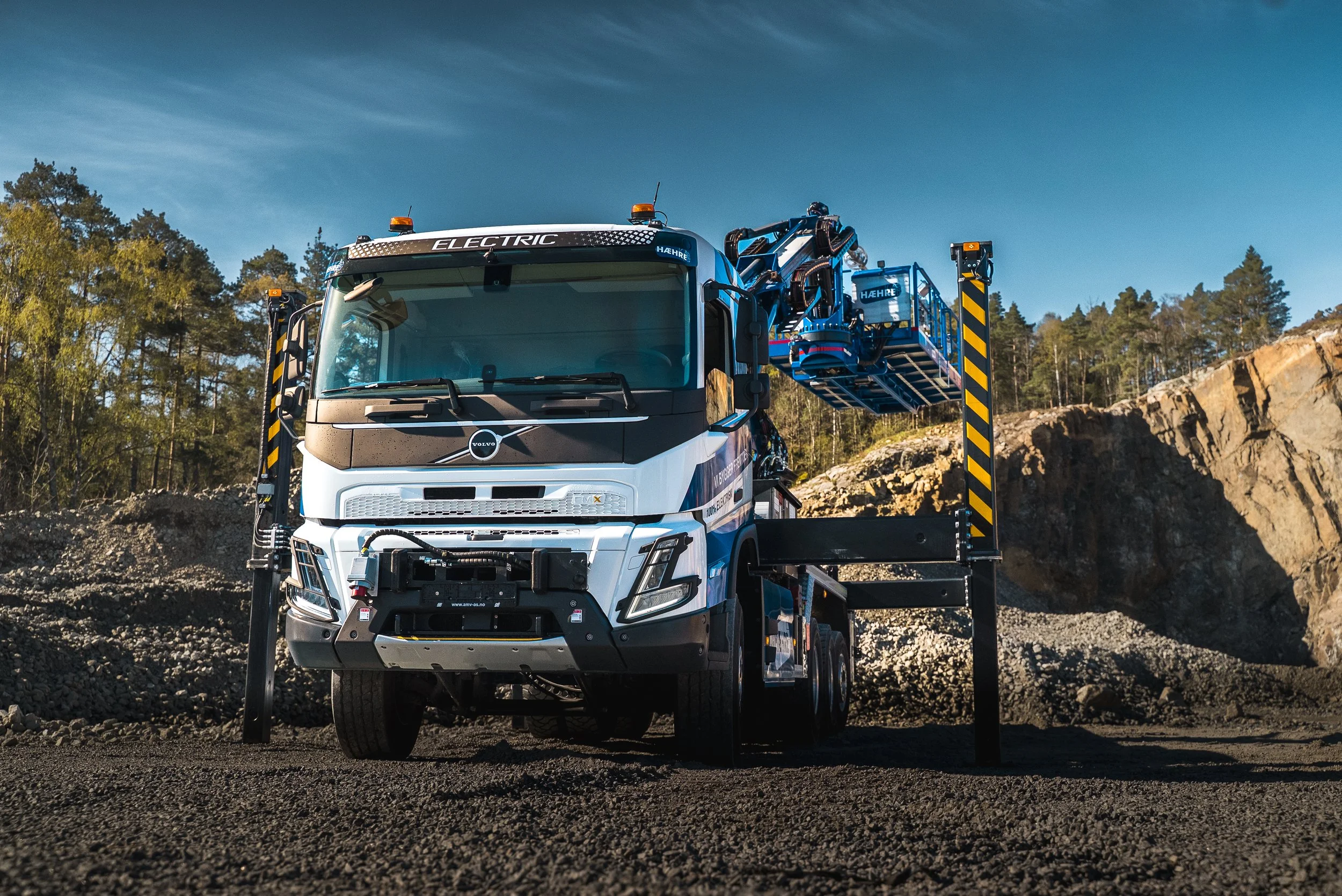

11QRE - Volvo FMX Electric
-
Length: 10,9 m
Height: 3,72 m
Width: 2.55 m
Weight: 28 t -
Standard basket - SWL1000
Membrane basket - SWL750
PE Foam basket - SWL1000
Bolting basket - SWL650
Drilling basket - SWL200
Bolt puller (For standard basket)
