AMV 18QR is a long reach working platform with SWL500 capacity tailored for work in mines. Available with diesel or hybrid diesel-/electric (1000V) drivetrain. The compact design and high long reach makes the machine suitable for mining operations with large cross sections.
AMV 18QR
Lifting platform
Utility

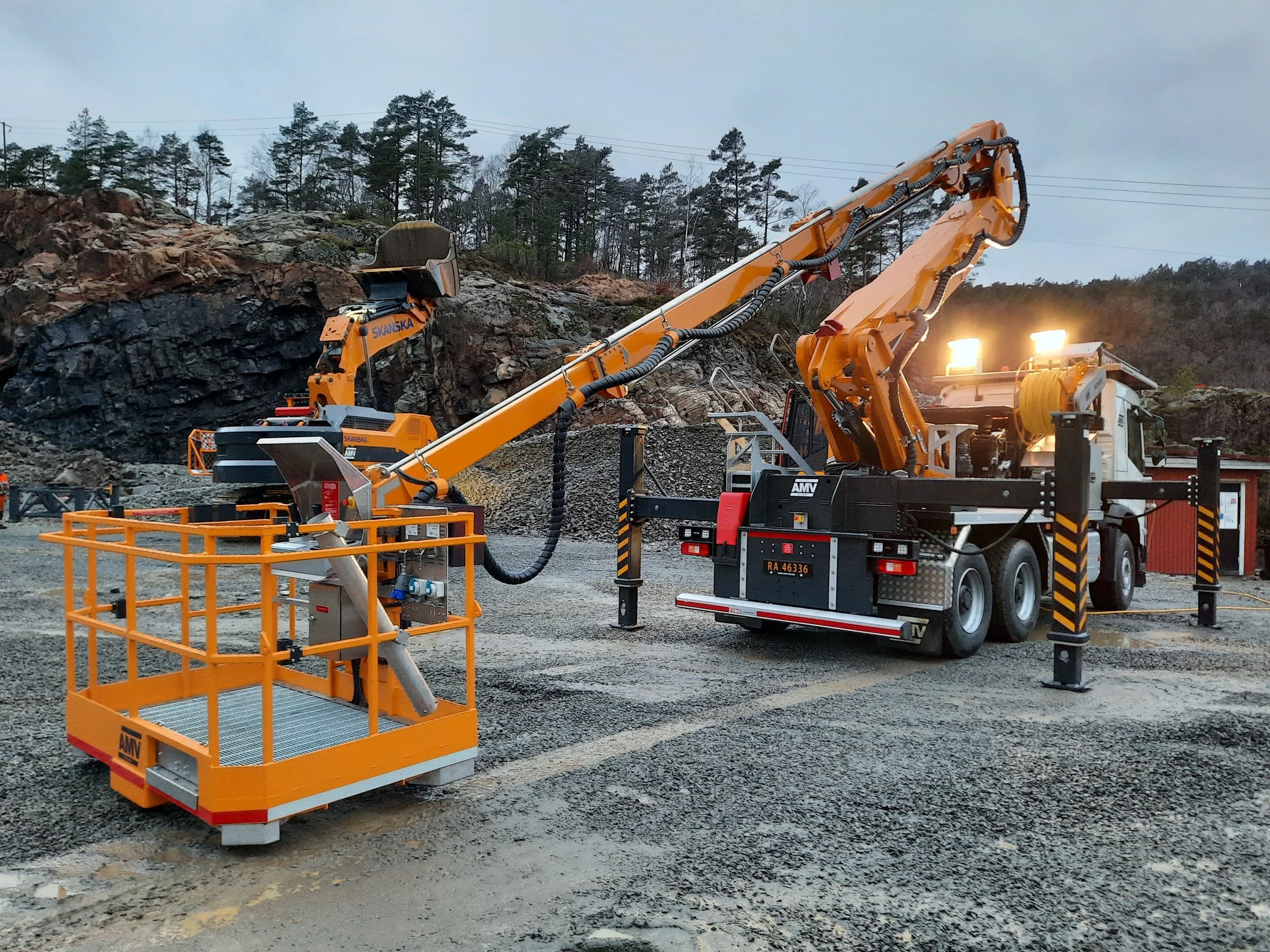

AMV 18QR is fitted with a fixed basked with max capacity of 500kg. Hydraulic, pneumatic and water outlets are available for tools.
Drivetrain
The product is available in two variants, QR-D (Diesel) or QR-H (Diesel/1000V)
Remote Control
Wireless control panel provides full control of boom and chassis for optimal safety and efficiency.
Flexibility
AMV 18QR is ideal for work in tunnels or mines, and can be delivered with a wide variety of baskets for installation work.
Specifications
-
Boom reach, horizontal: 13
Boom reach, vertical: 18 m -
AMV 18QRD - Diesel
AMV 18QRH - Hybrid (Diesel/1000V)
-
Length: 9.65 m
Width: 2.54 m
Height: 4.01 m
Weight: 23.3 t
