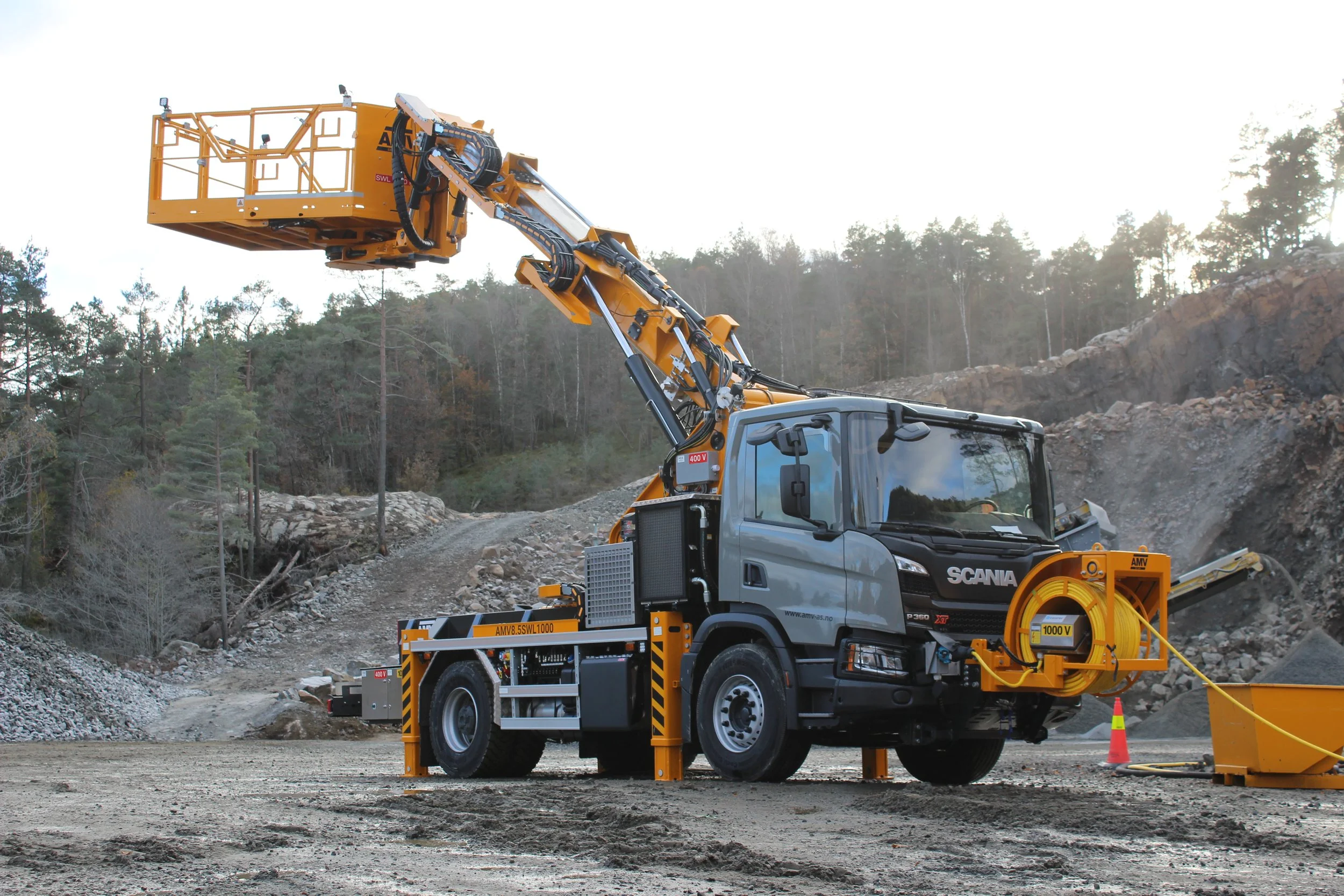

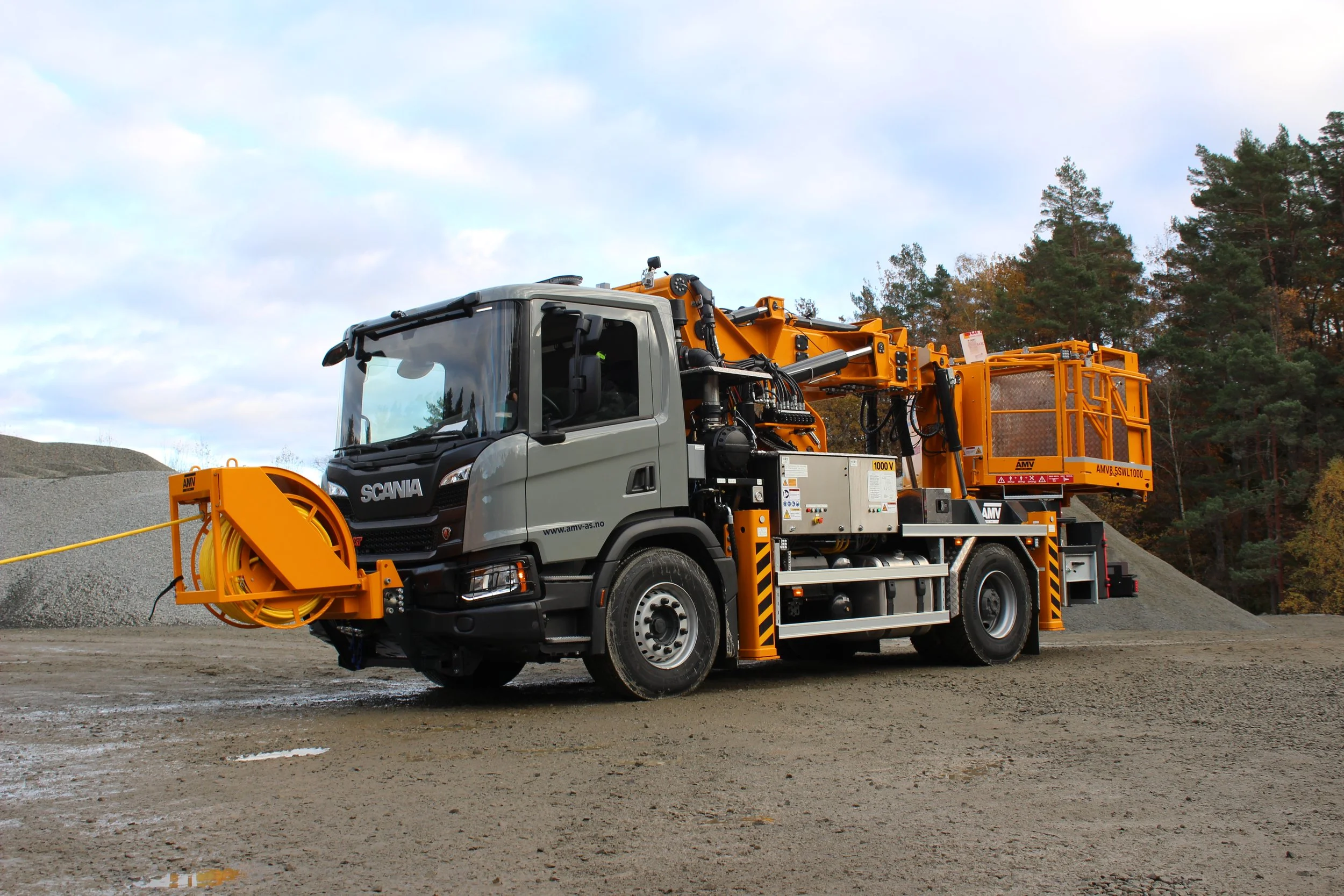

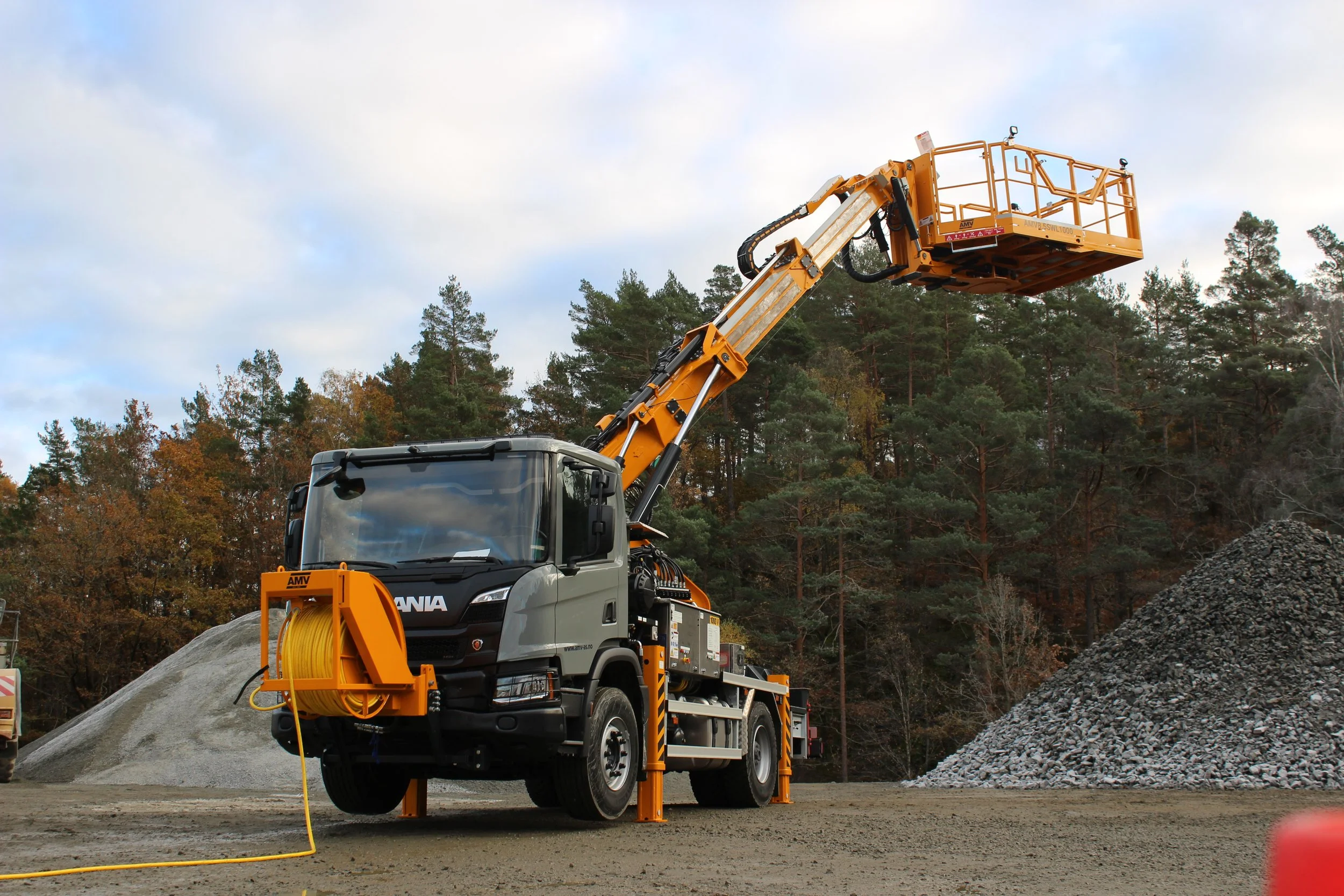

AMV 8,5M is a long reach working platform with SWL1000 capacity tailored for work in mines. Available with diesel or hybrid diesel-/electric (1000V) drivetrain. The compact design and high versitility makes the machine very well suited for mining operations.

AMV 8,5M
Lifting platform

Utility

8,5M is fitted with a fixed basked with max capacity of 1000kg and hydraulic foldable sides. Hydraulic, pneumatic and water outlets are available for tools.

Drivetrain

The product is available in two variants, QR-D (Diesel) or QR-H (Diesel/1000V)

Remote Control

Wireless control panel provides full control of boom and chassis for optimal safety and efficiency.

Flexibility

8,5QR is ideal for work in tunnels or mines, and can be delivered with a wide variety of baskets for installation work.

Specifications

  • Boom reach, horizontal: 7,5 m
    Boom reach, vertical: 10,5 m

    • 8.5QRD - Diesel

    • 8.5QRH - Hybrid (Diesel/1000V)

  • Length: 8.6 m
    Width: 2.55 m
    Height: 3.4m
    Weight: 26 t

Contact for quote
