AMV by Stonepower - eScorpion
Surface drilling rig

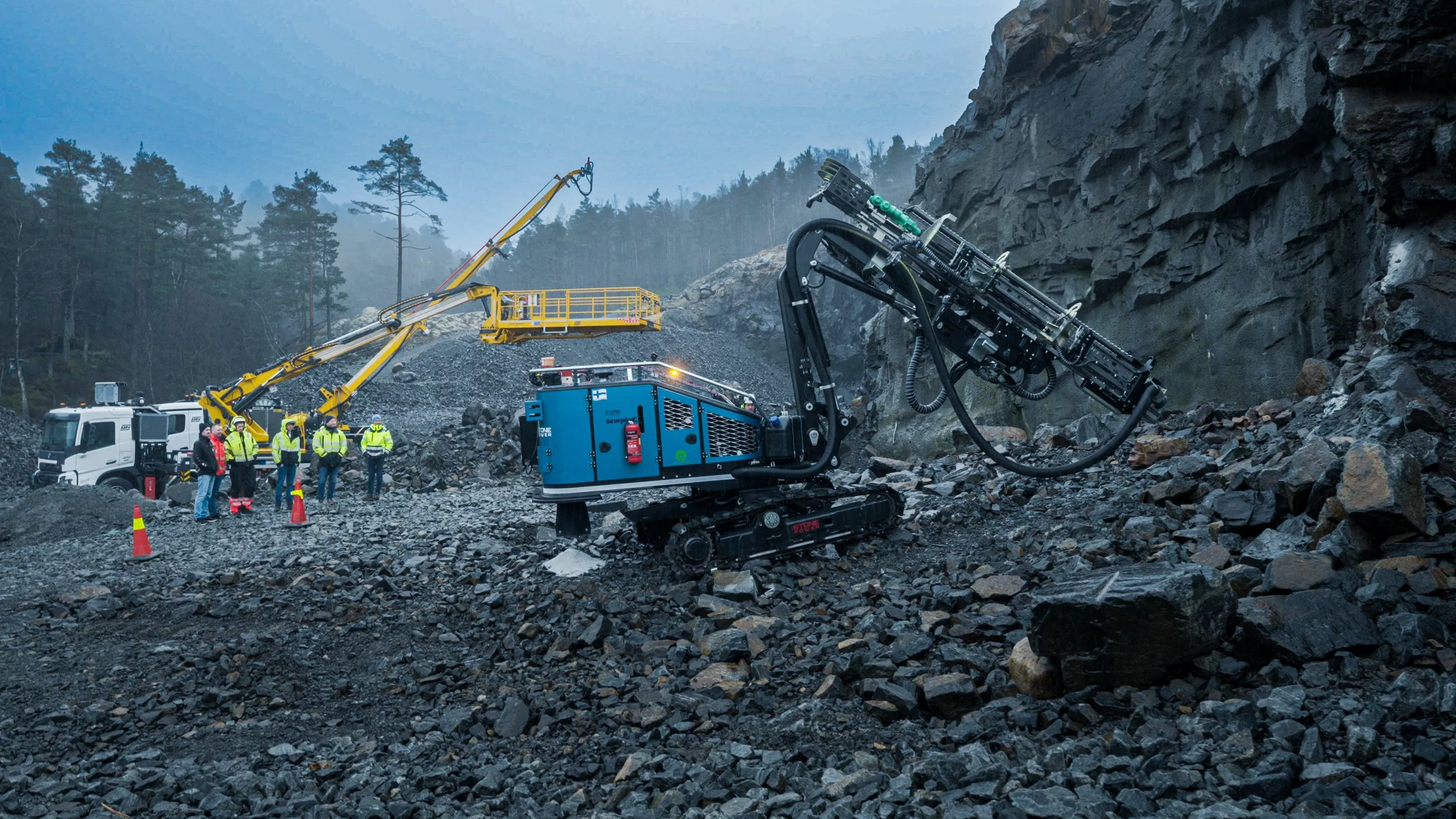

AMV by Stonepower eScorpion is battery electric surface drilling rig with great flexibility for horizontal and vertical drilling. With 350° rotation of the superstructure the rig can cover up to 140 m² drilling area. The battery electric powerpack makes it quiet, ideal for populated areas.
Flexible drilling

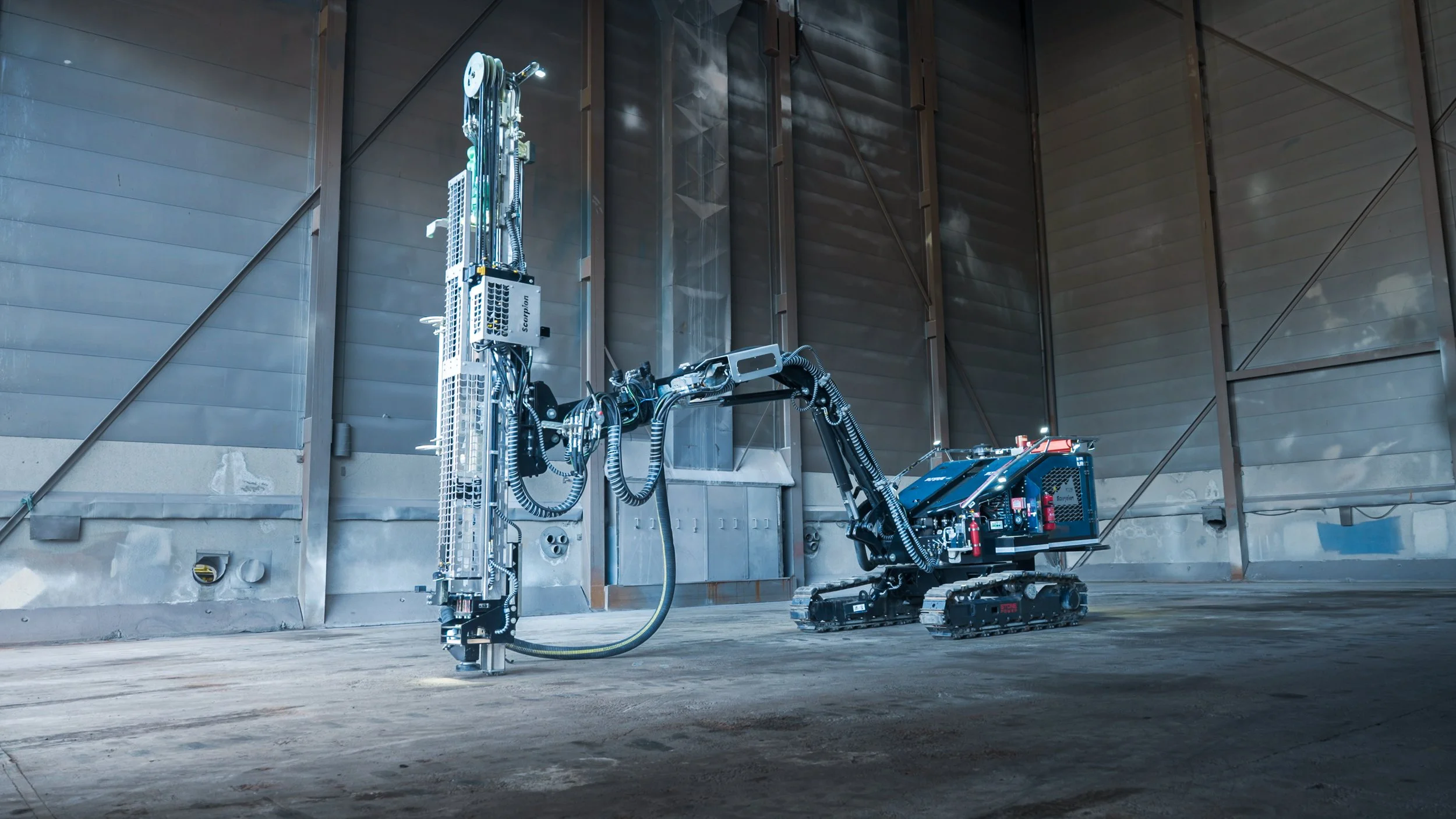

eScorpion is fitted with rotoboom providing 360° rotation, allowing drilling both downwards and upwards. Fitted with Montabert HC50 drifter.
Fully electric
Standard battery capacity of 120kWh allows up to 4 hours of drilling between charging.
22kW Type 2 charging is possible during operation.
Remote Control

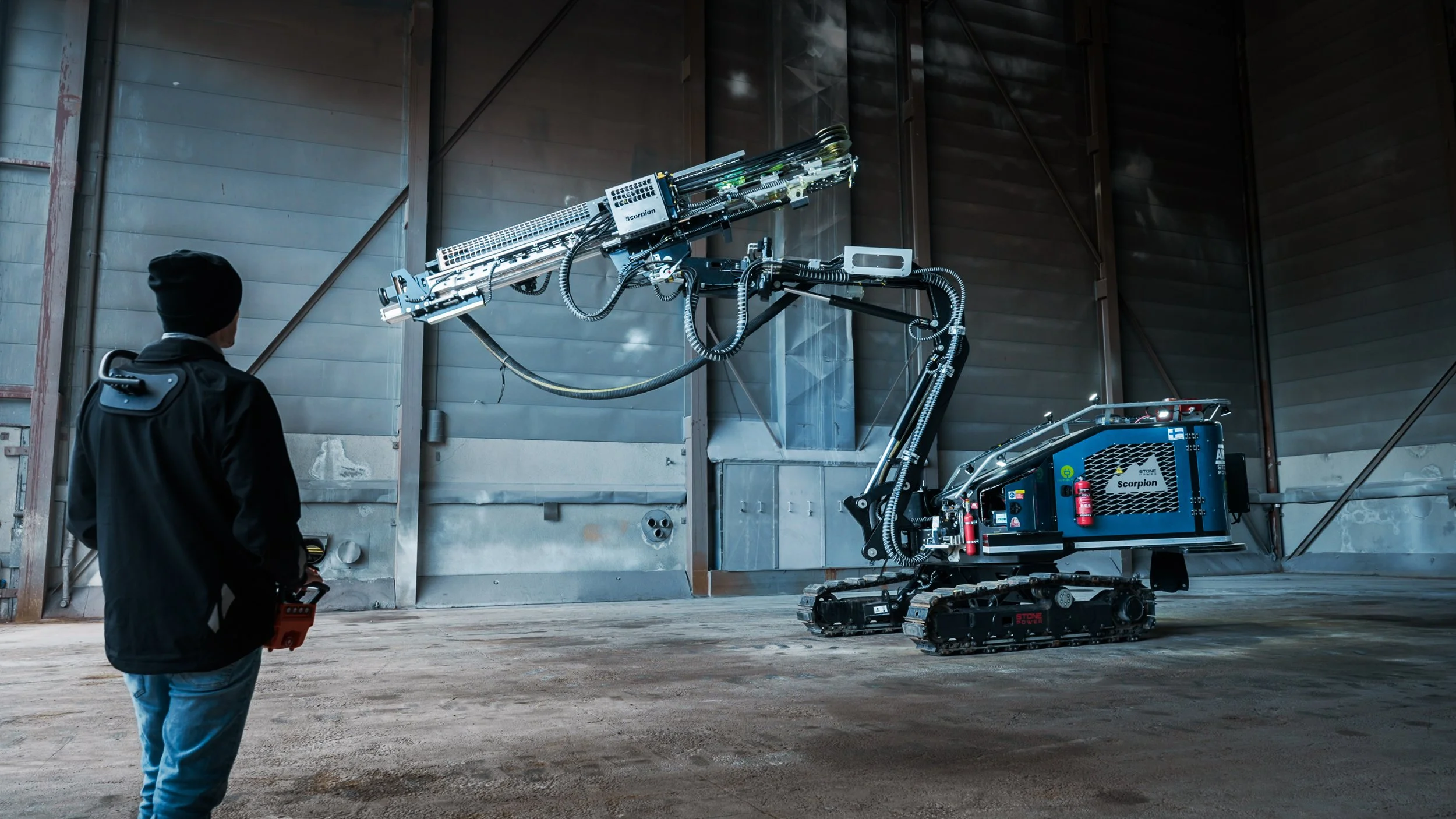

All functions of the machine are radio controlled, allowing operator full overview of operation.
Designed to your need
eScorpion is designed for versitility, offering a wide range of options to meet your requirements. Ask us about available options.
Specification
-
Working area: 140 m²
Max dia. working area: 14 m
Min. dia. working area: 4,5 m
Rotation main body: 350°
Bom swing: +40°
Bom cover area: 1,3 m – 6 m @ 40°
Feeder, up: 9 m
Feeder, down: 5 m
-
Battery electric driveline
Battery capcity: 120kWh
Working time: 3-4 hours (150-200m)
Charging time (Fast charging): 1-2 hours
If charged during drilling, continues operation is possible.
-
Length: 6 m
Width: 2.2 m
Height: 2.7 m
Feeder: 5.6 m
Weight: 10 t
-
Water mist system
Dust collection
Drill & split attachment
Central lubrication
Drill silencer
Hydraulic grinder
… and more
