AMV by Stonepower
- Spider Surface drilling rig

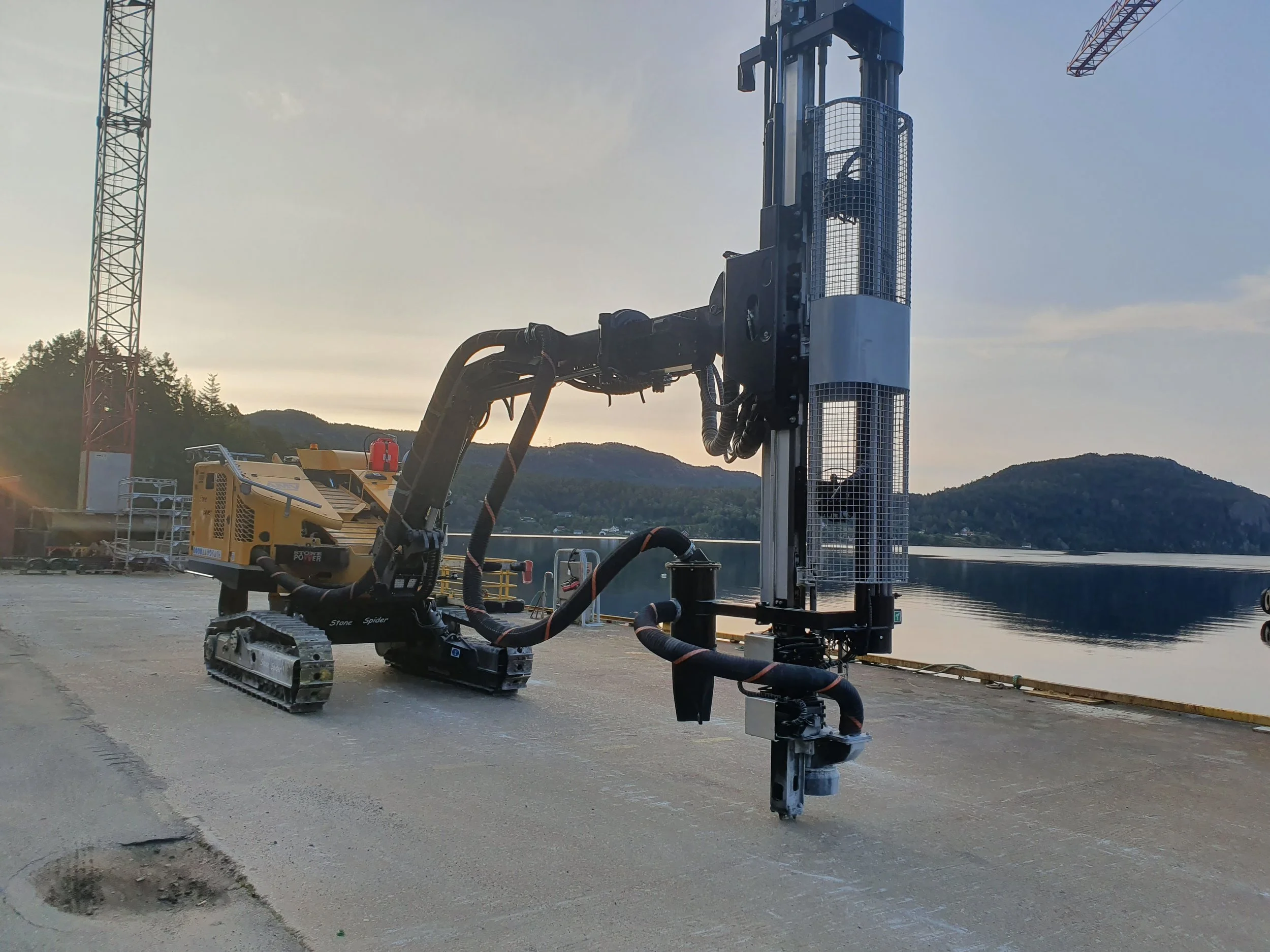

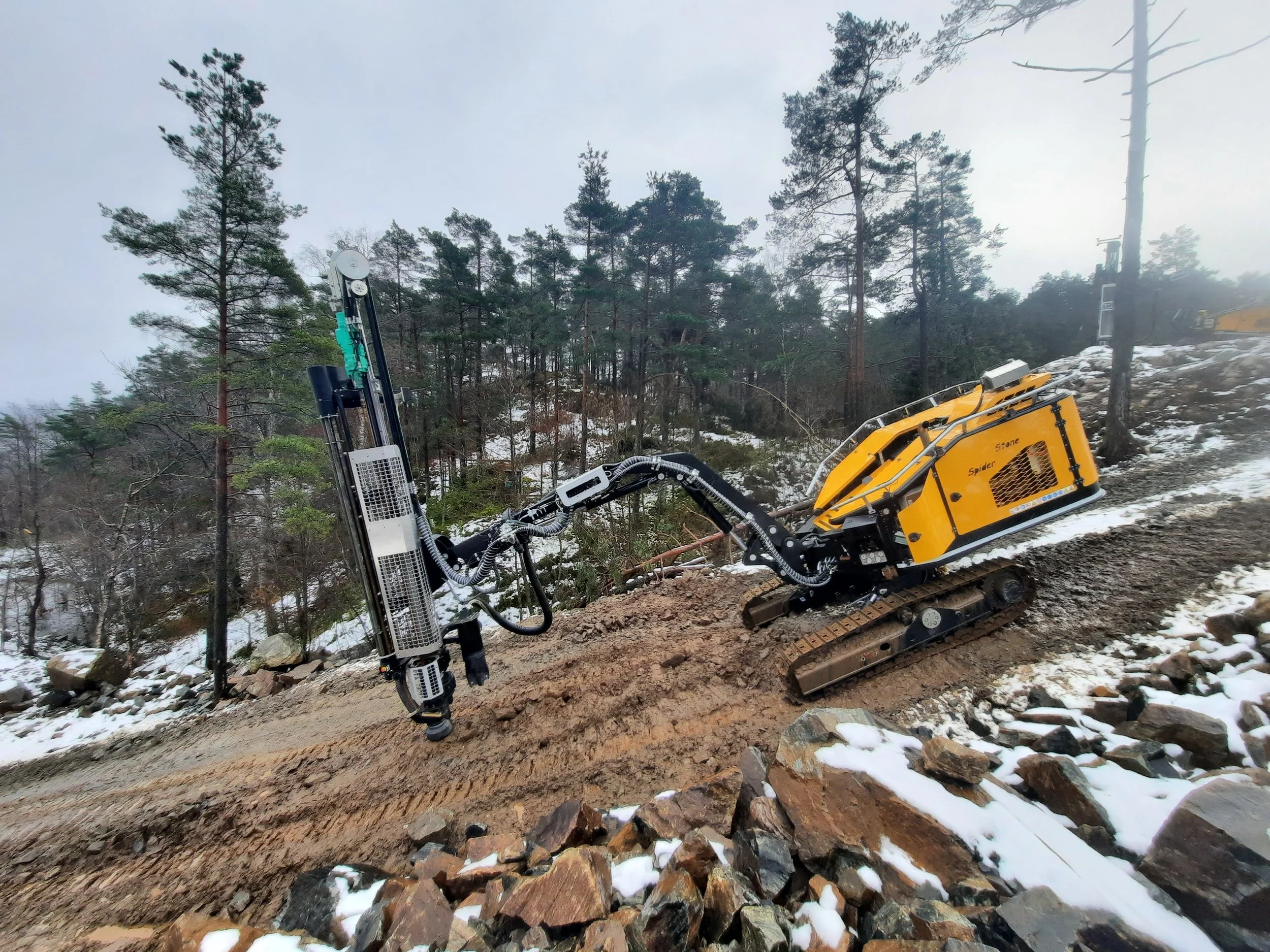

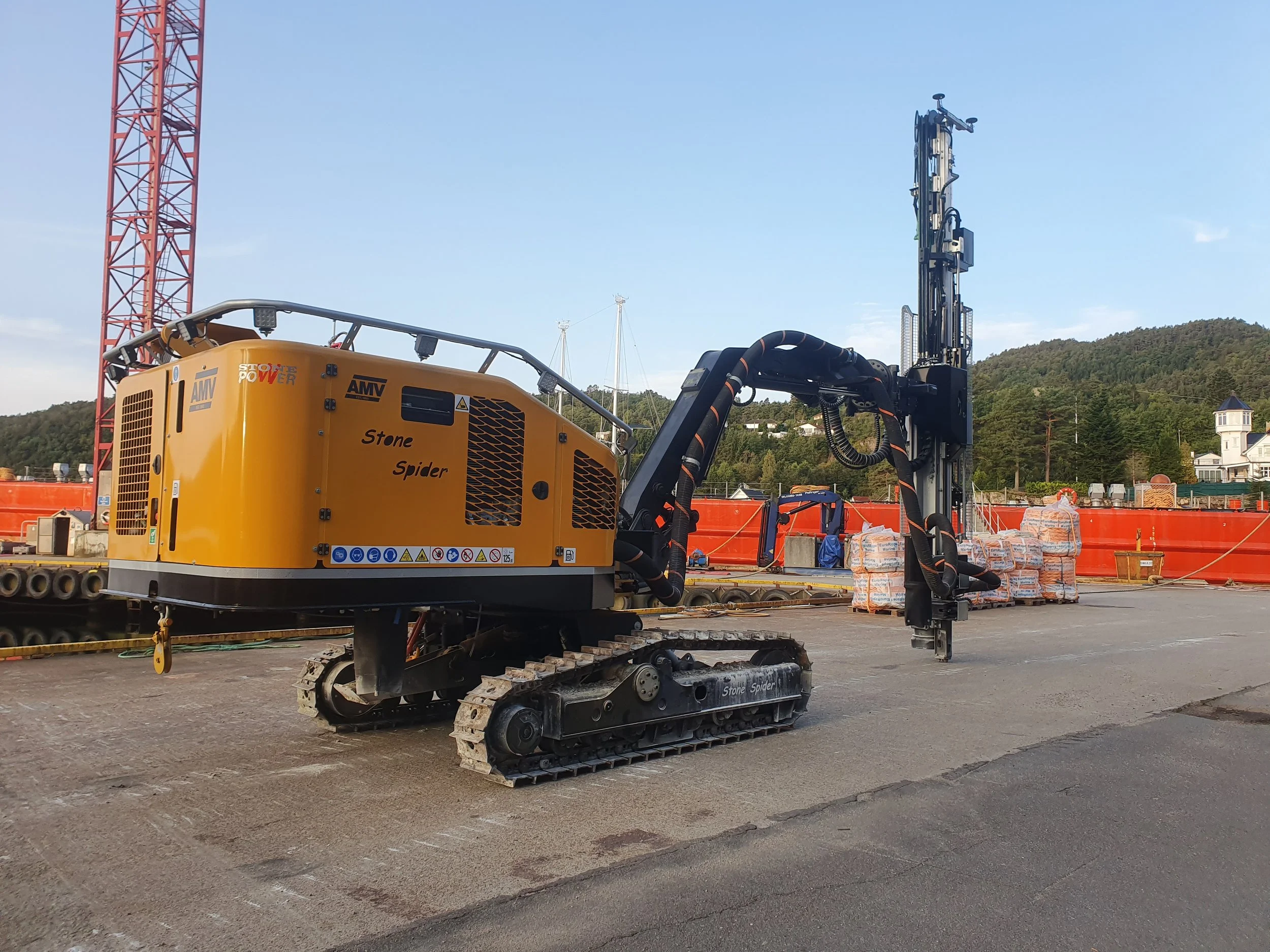

AMV by Stonepower Spider is our largest drilling rig. Superior coverage area of 140m² makes it deal for horisontal or vertical drilling in construction areas, tunnels, mines or remote terrain. The main sctructure can rotate 350°- making it flexible in confined areas.
Flexible drilling
Spider is fitted with rotoboom providing 360° rotation, allowing drilling both downwards and upwards.
Fitted with Montabert HC95 drifter.
Nordic conditions
Spider is deisgned in - and for nordic conditions. A strong Cummins 6.7L engine with optional webasto can operate in ambinent temperatures from -20°C to +30°C.
Remote Control
All functions of the machine are radio controlled, allowing operator full overview of operation.
Designed to your need
Spideris designed for versitility, offering a wide range of options to meet your requirements. Ask us about available options.
Specification
-
Working area: 140 m²
Max dia. working area: 12 m
Min. dia. working area: 6 m
Rotation main body: 350°
Bom swing: +40°
Bom cover area: 3 m – 6 m @ 40°
Feeder, up: 9 m
Feeder, down: 5.8 m
-
Engine: Cummins 6 syl 6.7L - 175kW
Fuel type: Diesel
Emissions system: Stage V
-
Length: 6.6 m
Width: 2.25 m
Height: 2.95 m
Weight: 12.5 t
-
Water mist system
Dust collection
Drill & split attachment
Central lubrication
Drill silencer
Hydraulic grinder
… and more
