AMV by Stonepower - Termite
Surface drilling rig

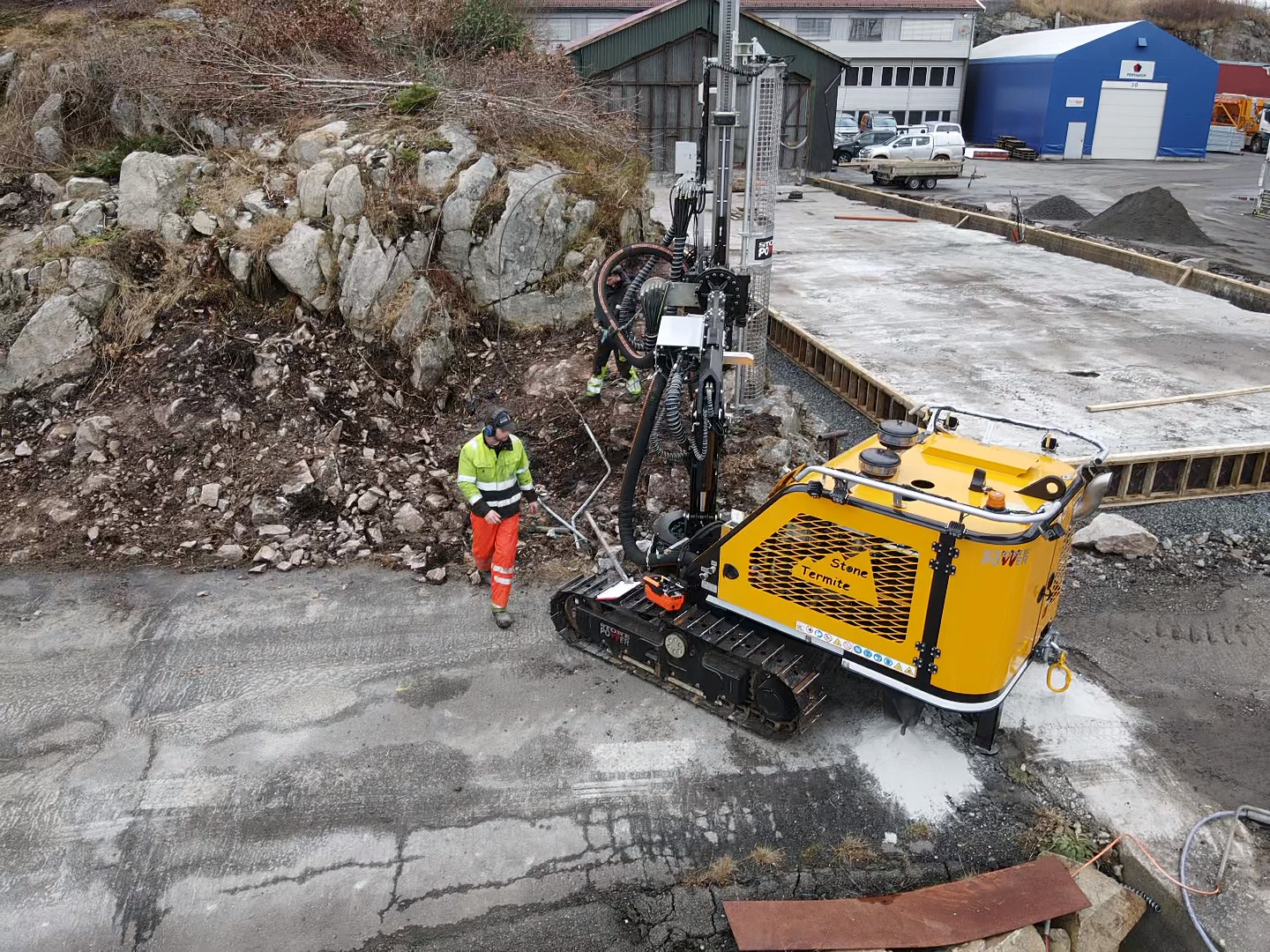

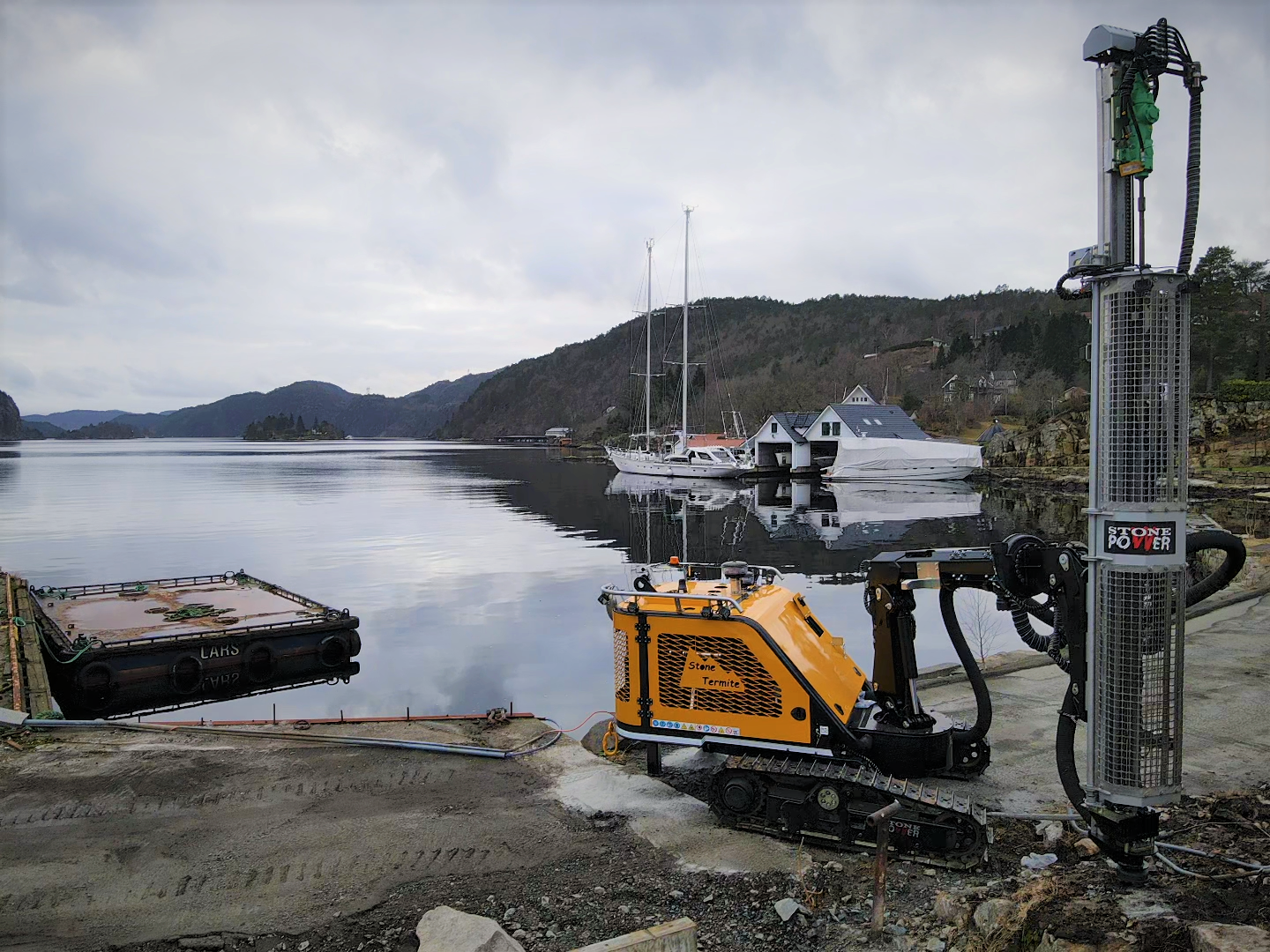

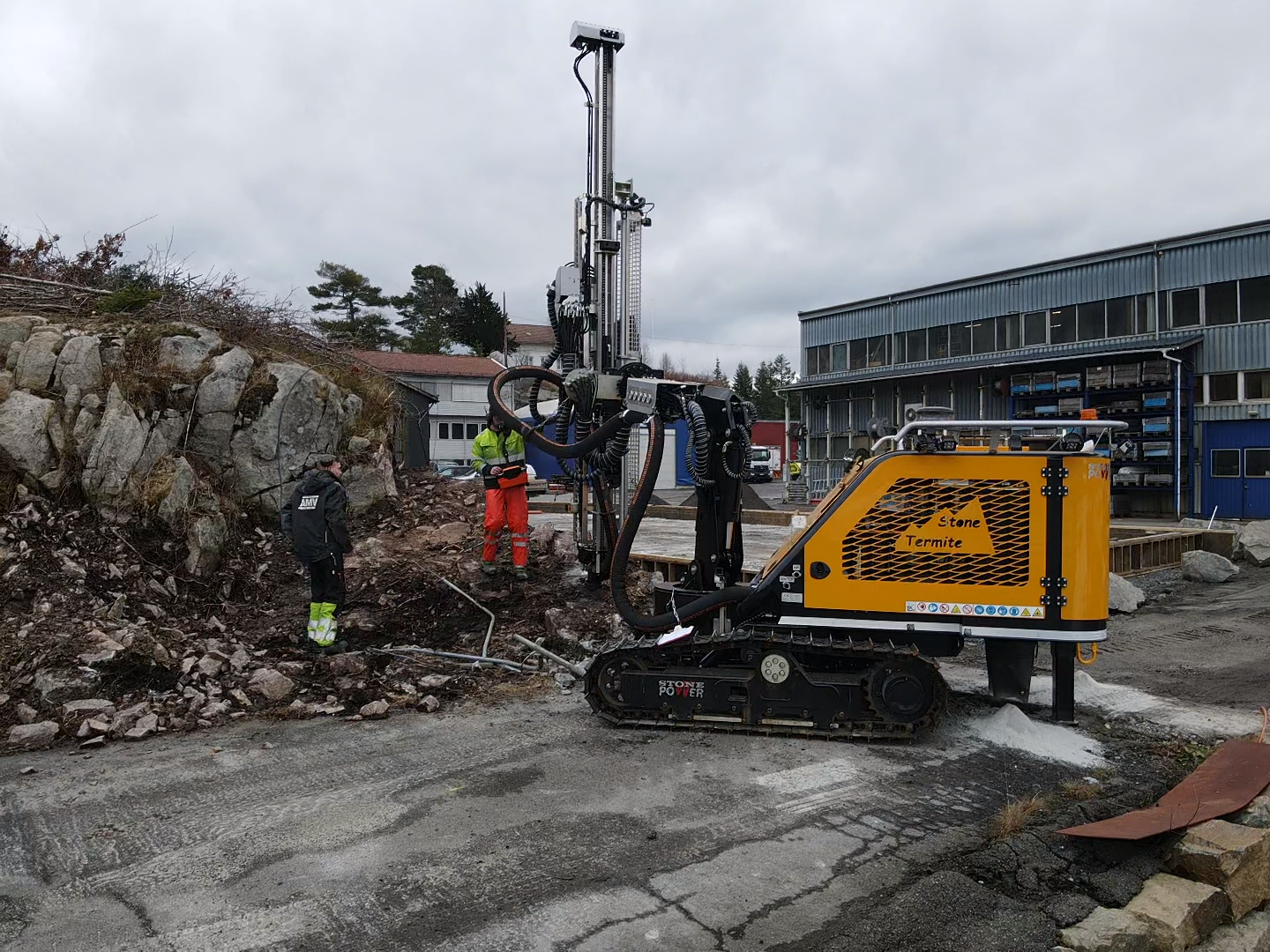

AMV by Stonepower Termite is a small but powerful drilling rig, ideal for horisontal or vertical drilling in construction areas, tunnel, mines or remote terrain. The boom can rotate 270°, making access easy.
Fitted with Montabert HC25 drifter.
Flexible drilling
Termite is fitted with rotoboom providing 360° rotation, allowing drilling both downwards and upwards.
Fitted with Montabert HC25 drifter.
Nordic conditions
Termite is deisgned in - and for nordic conditions. A strong Cummins 4.5 engine with optional webasto can operate in ambinent temperatures from -20°C to +30°C.
Remote Control
All functions of the machine are radio controlled, allowing operator full overview of operation.
Designed to your need
Termite designed for versitility, offering a wide range of options to meet your requirements. Ask us about available options.
Specification
-
Working area: 41 m²
Max dia. working area: 9 m
Min. dia. working area: 3 m
Rotation boom: 270°
Feeder, up: 7.8 m
Feeder, down: 4.5 m
-
Engine: Cummins 4 syl 4.5 - 97kW
Fuel type: Diesel
Emissions system: Stage V
-
Length: 5.27 m
Width: 2.26 m
Height: 2.63 m
Weight: 5.3 t
-
Water mist system
Dust collection
Central lubrication
Drill silencer
Hydraulic grinder
… and more
